Heated Oxygen Sensor: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL HEATED OXYGEN SENSOR (for 4WD)
1. Using SST, install the heated oxygen sensor.

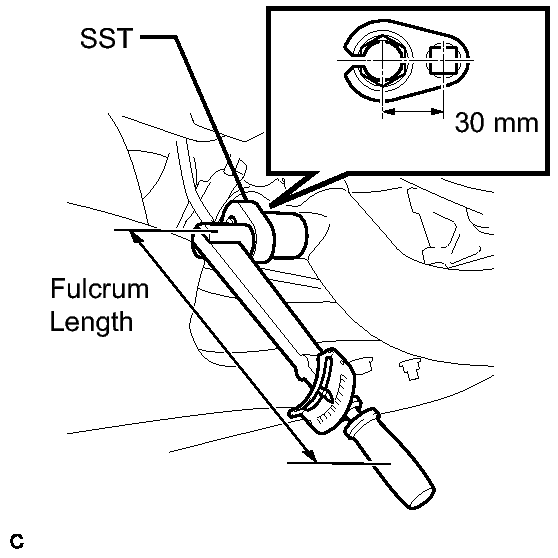

  Fig 1: Identifying Fulcrum Length
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
  without SST

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
  NOTE:
  - This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and SST with a measurement of 30 mm (1.18 in.). Refer to PRECAUTION .
  - This torque value is effective when SST is parallel to the torque wrench.
2. Connect the wire harness grommet.
3. Connect the heated oxygen sensor connector.
INSTALL HEATED OXYGEN SENSOR (for 2WD)
1. Using SST, install the heated oxygen sensor.

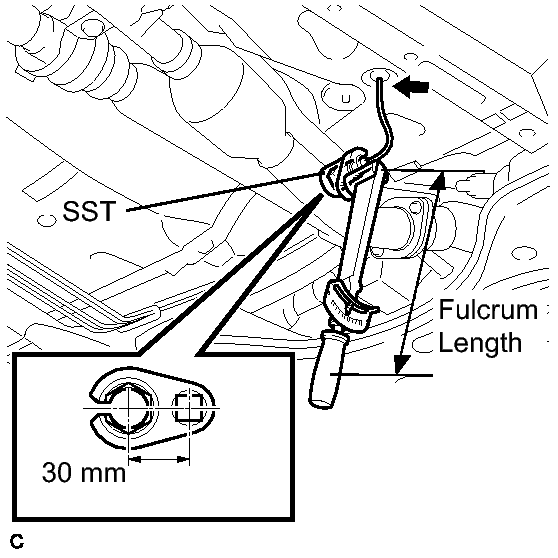

  Fig 2: Installing Heated Oxygen Sensor (For 2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
  without SST

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
  NOTE:
  - This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and SST with a measurement of 30 mm (1.18 in.). Refer to PRECAUTION .
  - This torque value is effective when SST is parallel to the torque wrench.
2. Connect the heated oxygen sensor connector.

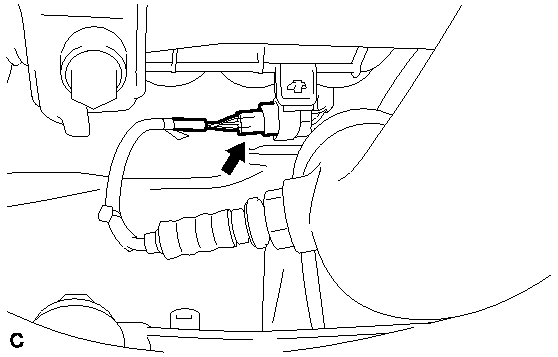

  Fig 3: Locating Heated Oxygen Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FOR EXHAUST GAS LEAK
