Intake Manifold: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

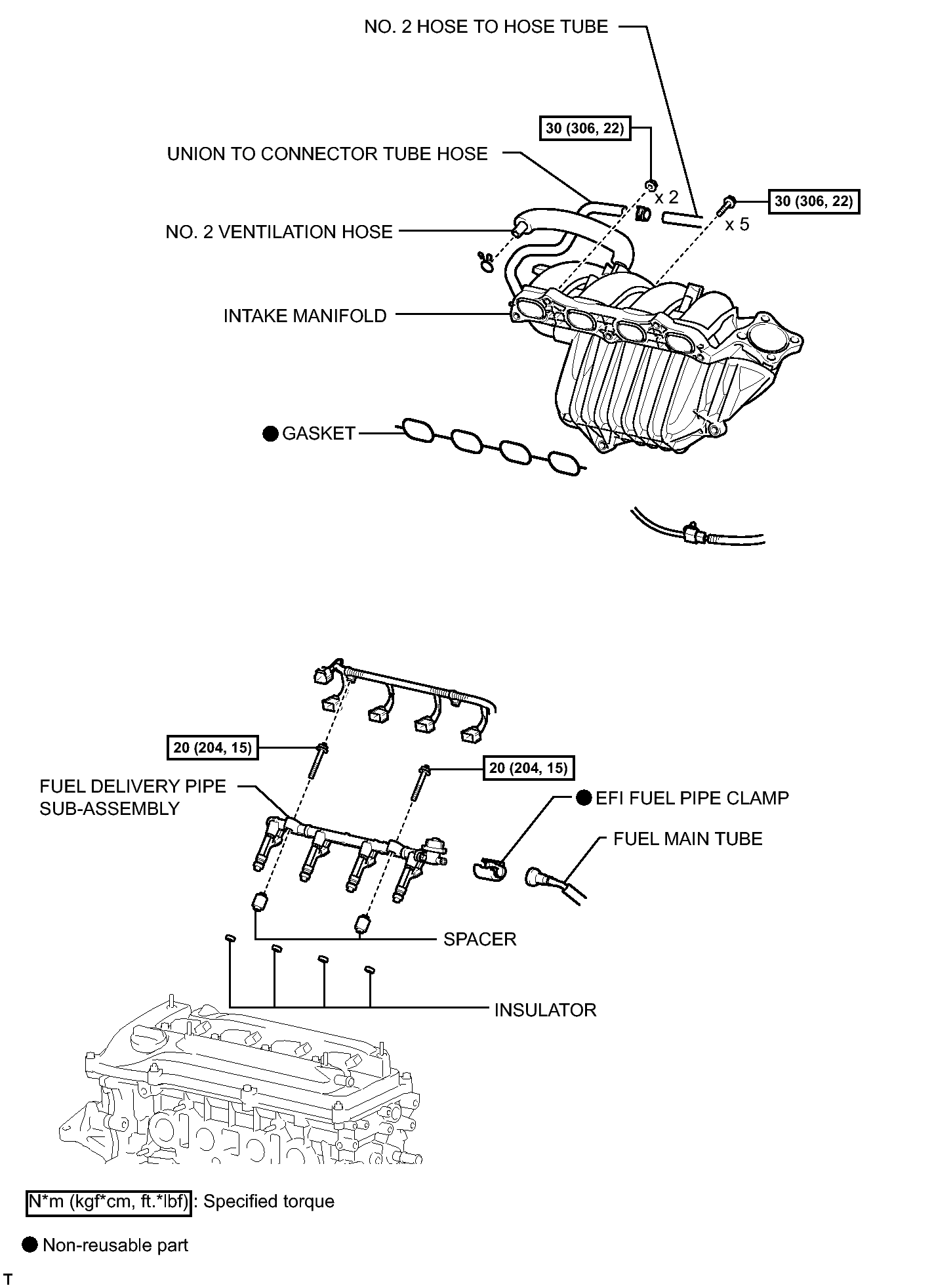

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components And Torque Specifications (1 Of 2)
GTY244689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Intake Manifold Replacement Components Torque Specifications Table (2 Of 5)
GTY245020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (3 Of 5)
GTY236789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

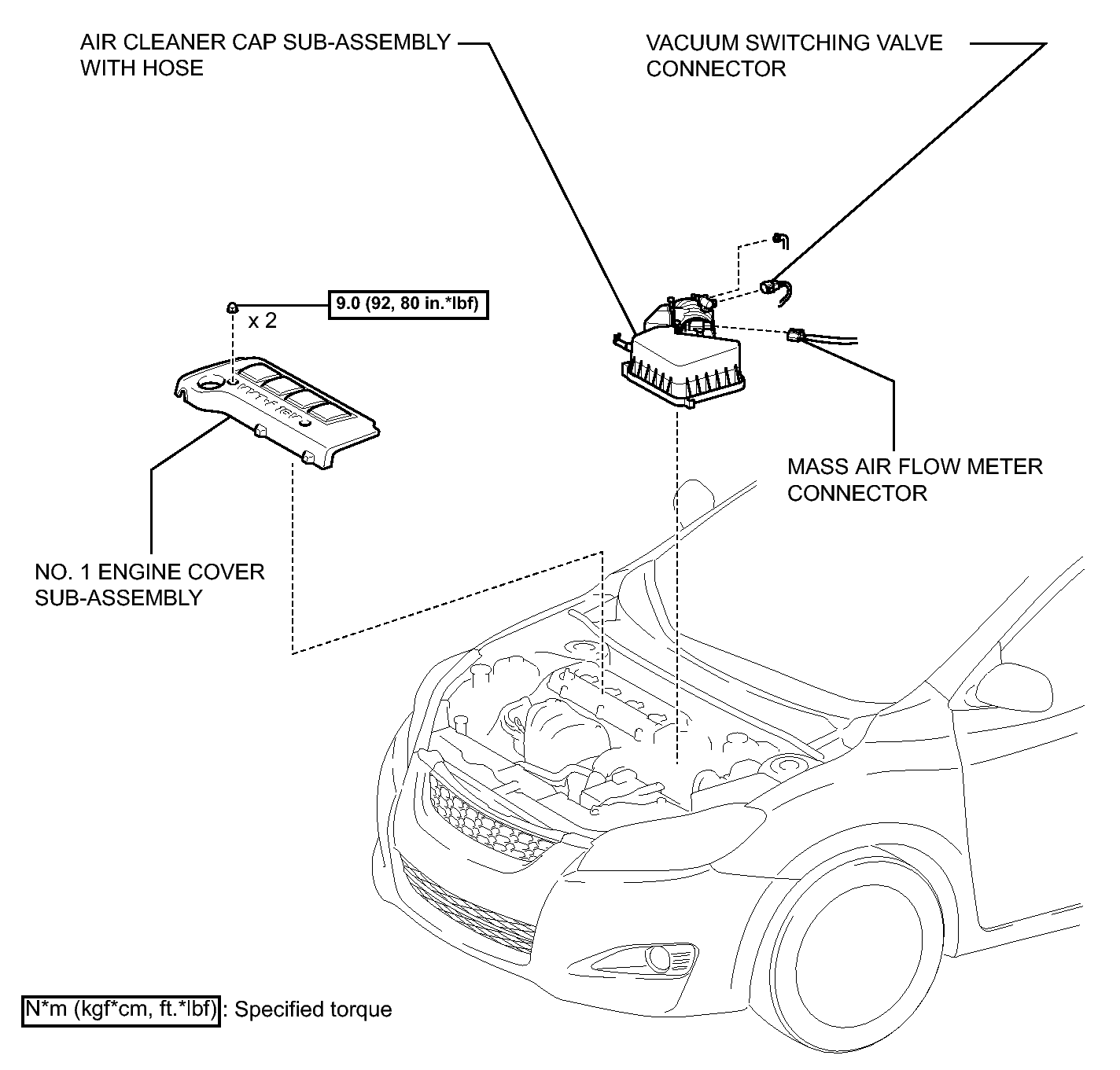

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (4 Of 5)
GTY290639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

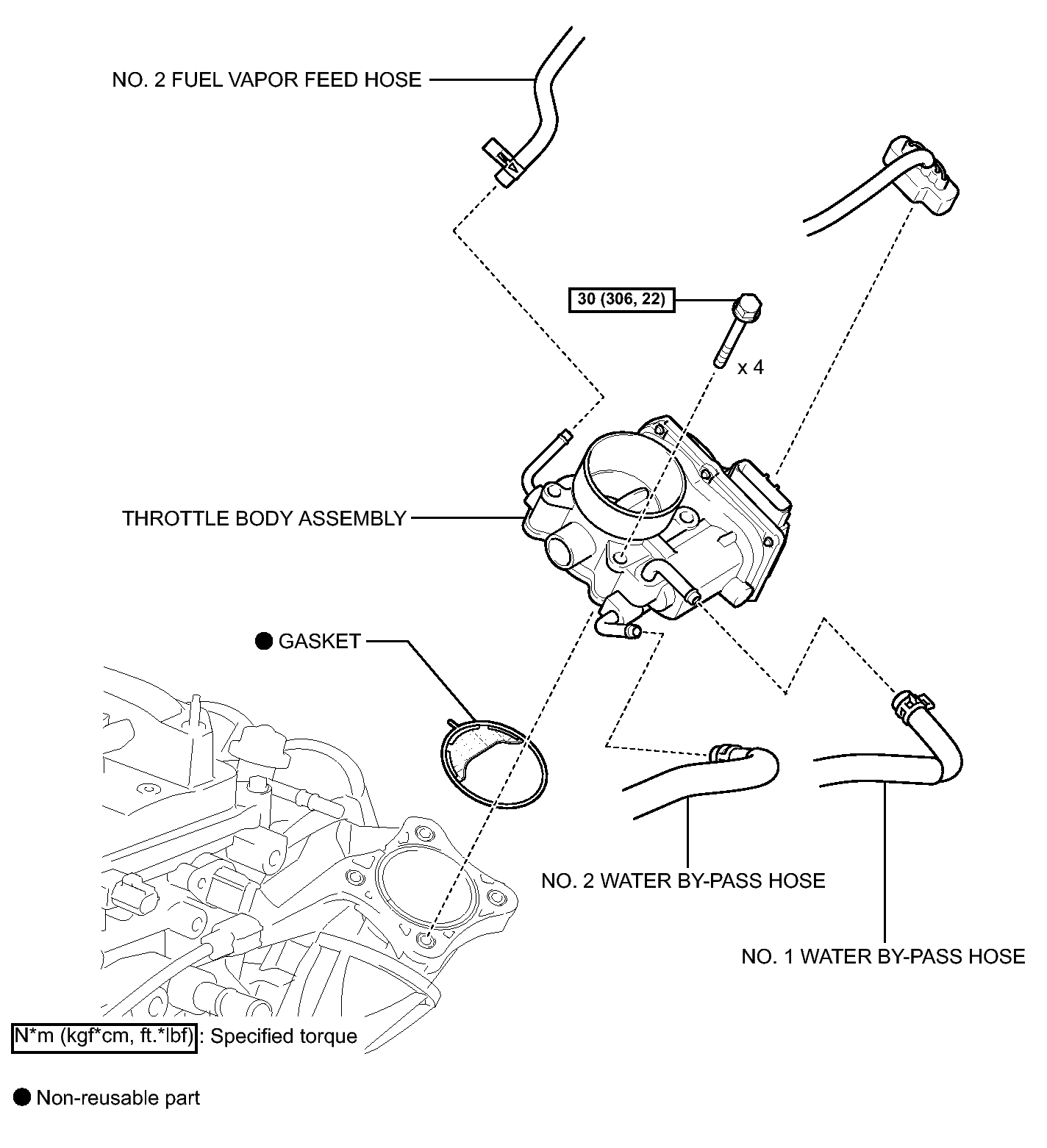

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (5 Of 5)
GTY238237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
