Intake Manifold: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL INTAKE MANIFOLD
    1. Install a new gasket into the intake manifold.

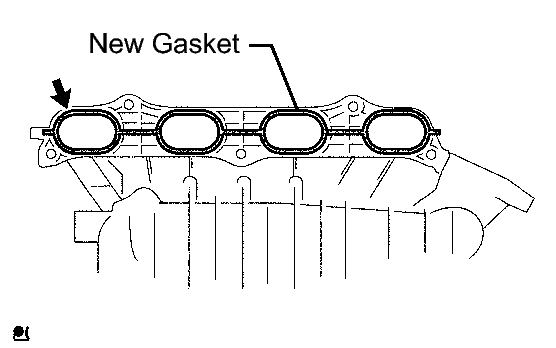

      Fig 1: Identifying Gasket
      GTY191632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the intake manifold with the 5 bolts and 2 nuts.

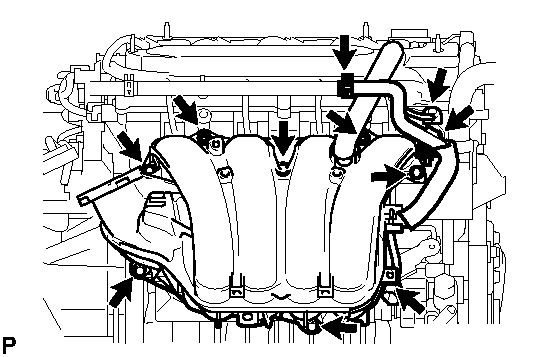

      Fig 2: Remove/Install Intake Manifold With Fasteners
      GTY292626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

    3. Fit the union to connector tube hose into the vacuum hose clamp.
    4. Install the wire harness clamp.
    5. Connect the camshaft timing oil control valve connector.
    6. Connect the union to connector tube hose to the No. 2 hose to hose tube.
  2. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  3. CONNECT NO. 2 VENTILATION HOSE  . Refer to INSTALLATION - Step 2
  4. CONNECT FUEL MAIN TUBE  . Refer to INSTALLATION - Step 4
  5. INSTALL THROTTLE BODY ASSEMBLY  . Refer to INSTALLATION - Step 1
  6. INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE  . Refer to INSTALLATION - Step 2
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  8. ADD ENGINE COOLANT  . Refer to REPLACEMENT - Step 2
  9. INSPECT FOR COOLANT LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  10. INSPECT FOR FUEL LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  11. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 93
  12. INSTALL SUSPENSION TOWER DAMPER ASSEMBLY (w/ Front Strut Bar)  . Refer to INSTALLATION - Step 6
  13. INSTALL OUTER COWL TOP PANEL  . Refer to INSTALLATION - Step 19
  14. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY  . Refer to INSTALLATION - Step 3
  15. INSTALL COWL TOP VENTILATOR LOUVER LH  . Refer to INSTALLATION - Step 4
  16. INSTALL COWL TOP VENTILATOR LOUVER RH  . Refer to INSTALLATION - Step 5
  17. INSTALL HOOD TO COWL TOP SEAL  . Refer to INSTALLATION - Step 6
  18. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to INSTALLATION - Step 7
  19. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to INSTALLATION - Step 8
  20. INSTALL FRONT WIPER ARM HEAD CAP  . Refer to INSTALLATION - Step 9
