Curtain Shield Airbag Assembly: Disposal: Disposal

WARNING:

Before performing pre-disposal deployment of any SRS component, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

PRECAUTION
HINT:

When scrapping a vehicle equipped with an SRS or disposing of the curtain shield airbag assembly, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Dept. of TOYOTA MOTOR SALES, U.S.A., INC.
WARNING:
- An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.
- Never dispose of a curtain shield airbag assembly that has an undeployed airbag.
- The airbag produces an exploding sound when it is deployed, so perform the operation outdoors and where it will not create a nuisance to nearby residents.
- When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool). Perform the operation in a place away from electrical noise.
- When deploying the airbag, perform the operation at least 10 m (33 ft.) away from the curtain shield airbag assembly.
- The curtain shield airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
- Use gloves and safety glasses when handling a curtain shield airbag assembly with a deployed airbag.
- Do not apply water, etc. to a curtain shield airbag assembly with a deployed airbag.
- Always wash your hands with water after completing the operation.
DISPOSE OF CURTAIN SHIELD AIRBAG ASSEMBLY (WHEN INSTALLED IN VEHICLE)
HINT:

Prepare a battery as the power source to deploy the airbag.
1. Check the function of SST See step 2.

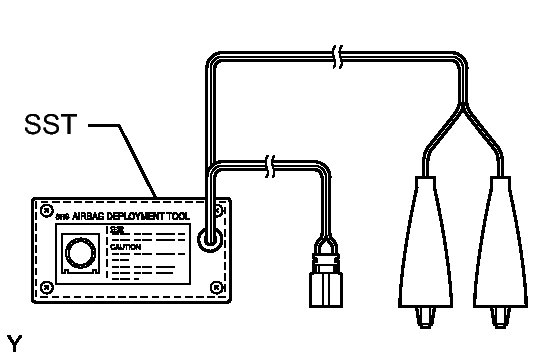

  Fig 1: Identifying SST (SRS Airbag Deployment Tool)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Refer to Precaution. Refer to PRECAUTION .
3. Disconnect the cable from the negative (-) battery terminal.
  WARNING:
  Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
4. Remove the roof headlining assembly. Refer to REMOVAL .
5. Install SST.
  1. Disconnect the connector from the curtain shield airbag assembly.
    NOTE:
    When disconnecting the airbag connector, take care not to damage the airbag wire harness.
  2. After connecting the following SST to each other, connect them to the curtain shield airbag assembly.

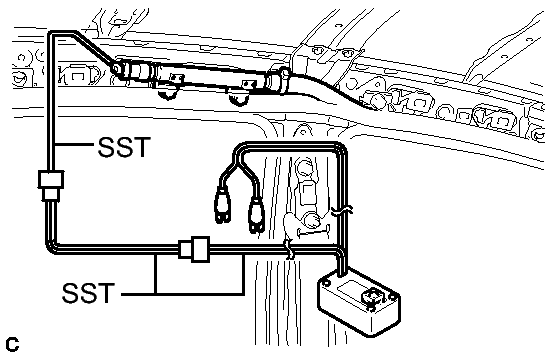

    Fig 2: Connecting SST To Curtain Shield Airbag Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    - SST: 09082-00700
    - SST: 09082-00802
      - 09082-10801
      - 09082-20801
    NOTE:
    To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.
  3. Move SST at least 10 m (33 ft.) away from the vehicle rear side window.

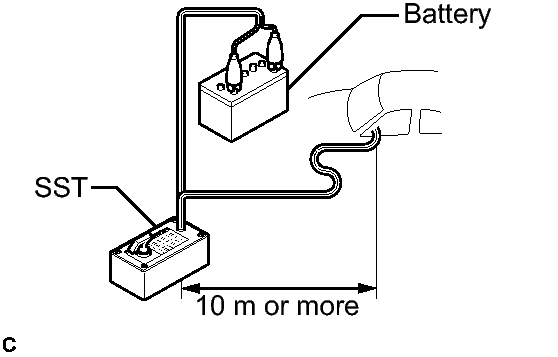

    Fig 3: Identifying Distance Between SST And Vehicle
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Maintaining enough clearance for the SST wire harness in the rear side window, close all doors and windows of the vehicle.
    NOTE:
    Take care not to damage the SST wire harness.
  5. Connect the red clip of SST to the battery positive (+) terminal and the black clip of SST to the battery negative (-) terminal.
6. Deploy the airbag.
  1. Check that no one is inside the vehicle or within a 10 m (33 ft.) radius of the vehicle.
  2. Press the SST activation switch and deploy the airbag.
    WARNING:
    When deploying the airbag, make sure that no one is near the vehicle.

    The curtain shield airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

    Use gloves and safety glasses when handling a curtain shield airbag assembly with a deployed airbag.

    Do not apply water, etc. to a curtain shield airbag assembly with a deployed airbag.

    Always wash your hands with water after completing the operation.
    HINT:

    The airbag is deployed as the LED of the SST activation switch comes on.
DISPOSE OF CURTAIN SHIELD AIRBAG ASSEMBLY (WHEN NOT INSTALLED IN VEHICLE)
NOTE:
- When disposing of the curtain shield airbag assembly, never use the customer's vehicle to deploy the airbag.
- Be sure to follow the procedure below when deploying the airbag.
HINT:

Prepare a battery as the power source to deploy the airbag.
1. Check the function of SST See step 3.

  Fig 4: Identifying SST (SRS Airbag Deployment Tool)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the curtain shield airbag assembly. Refer to REMOVAL .
  WARNING:
  When removing the curtain shield airbag assembly, work must be started at least 90 seconds after turning the ignition switch off and disconnecting the cable from the negative (-) battery terminal.
3. Cut off the deployment section of the curtain shield airbag assembly.

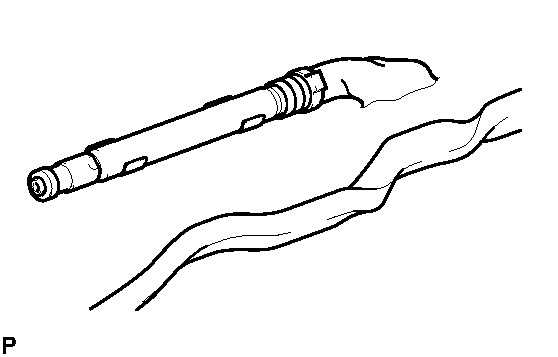

  Fig 5: Cutting Off Deployment Section Of Curtain Shield Airbag Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using braided wire, tie down the curtain shield airbag assembly to an unneeded tire.

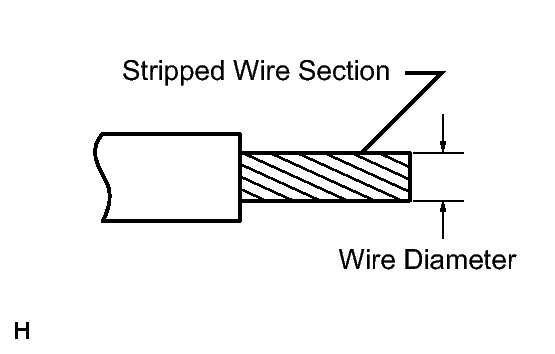

  Fig 6: Identifying Stripped Wire Section
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Wire

  Stripped wire section

  1.25 mm² (0.0019 in.² ) or more

  WARNING:
  If the wire is too thin or an alternative object is used to tie down the curtain shield airbag assembly, it may snap when the airbag is deployed. Always use a wire for vehicle use with an area of at least 1.25 mm² (0.0019 in.² ).

  HINT:

  To calculate the area of the stripped wire section:

  Area = 3.14 x (Diameter)² divided by 4
  1. Position the curtain shield airbag assembly inside the tire as shown in the illustration.

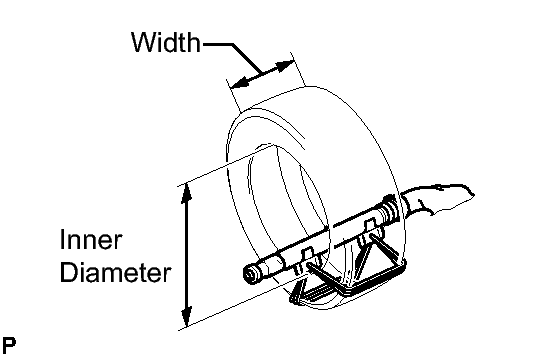

    Fig 7: Positioning Curtain Shield Airbag Assembly Inside Tire
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Minimum tire size

    Must exceed the following dimensions

    Width

    185 mm (7.28 in.)

    Inner diameter

    360 mm (1.18 ft.)

    WARNING:
    Make sure that the wires are tight. If there is slack in the wires, the curtain shield airbag assembly may break loose when the airbag is deployed.

    NOTE:
    The tire may be damaged by the airbag deployment, so use an unneeded tire.
5. Install SST.
  1. After connecting the following SST to each other, connect them to the curtain shield airbag assembly.

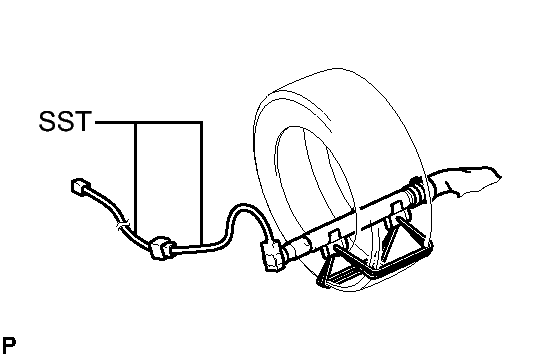

    Fig 8: Connecting SST To Curtain Shield Airbag Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    - SST: 09082-00802
      - 09082-10801
      - 09082-20801
6. Place the tires.
  WARNING:
  Do not place the deployment direction of the curtain shield airbag assembly facing toward the ground.
  1. Place at least 2 tires under the tire tied to the curtain shield airbag assembly.

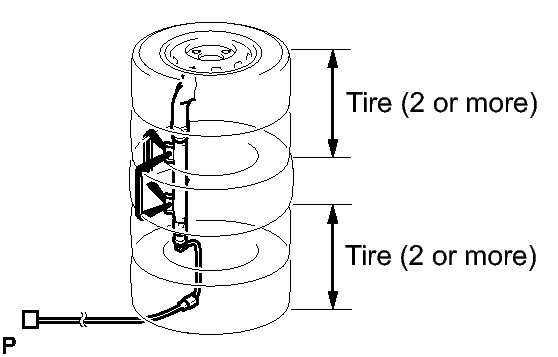

    Fig 9: Placing Tires
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Place at least 2 tires over the tire tied to the curtain shield airbag assembly. The top tire should have a wheel installed.
    NOTE:
    Do not place the SST connector under the tire because it could be damaged.
  3. Tie the tires together with the 2 wires.

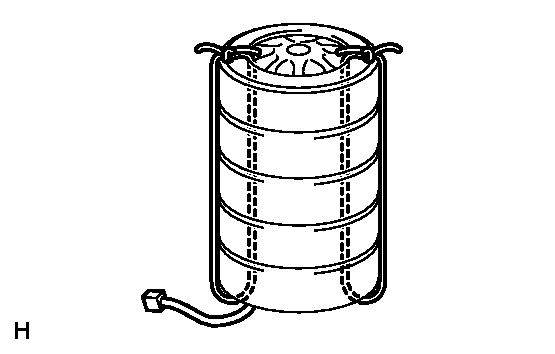

    Fig 10: Identifying Tires Tied With Wire
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    WARNING:
    Make sure that the wires are tight. If there is slack in the wires, the curtain shield airbag assembly may break loose when the airbag is deployed.
7. Install SST.
  1. Connect the SST connector.

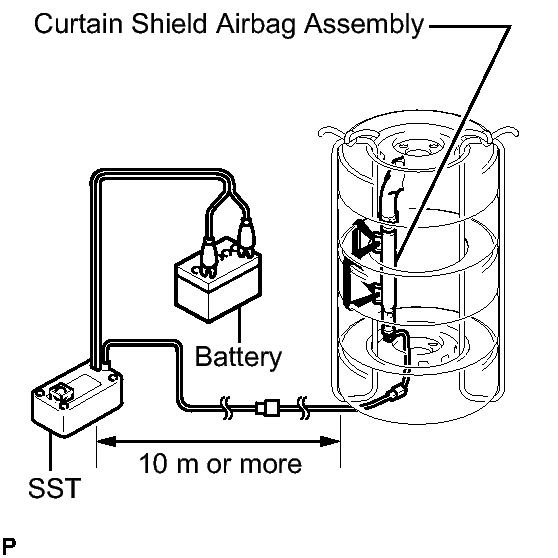

    Fig 11: Identifying Distance Between SST And Airbag
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    - SST: 09082-00700
    NOTE:
    To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.
  2. Move SST at least 10 m (33 ft.) away from the airbag tied down to the tire.
8. Deploy the airbag.
  1. Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.
  2. Check that no one is within a 10 m (33 ft.) radius of the tire which the curtain shield airbag assembly is tied to.
  3. Press the SST activation switch and deploy the airbag.
    WARNING:
    When deploying the airbag, make sure that no one is near the tire.

    HINT:

    The airbag is deployed as the LED of the SST activation switch comes on.
9. Dispose of the curtain shield airbag assembly.

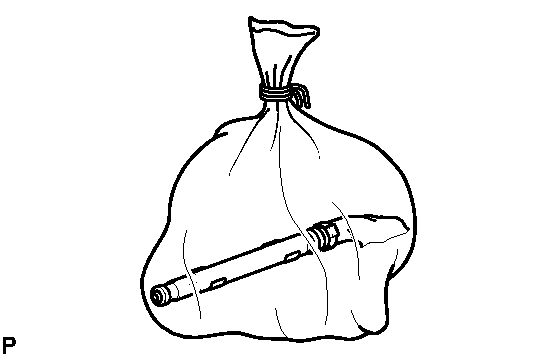

  Fig 12: Identifying Curtain Shield Airbag Assembly In Plastic Bag
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  WARNING:
  - The curtain shield airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
  - Use gloves and safety glasses when handling a curtain shield airbag assembly with a deployed airbag.
  - Do not apply water, etc. to a curtain shield airbag assembly with a deployed airbag.
  - Always wash your hands with water after completing the operation.
  1. Remove the curtain shield airbag assembly from the tire.
  2. Place the curtain shield airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations.
