Blower Resistor: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL BLOWER RESISTOR
    1. Install the blower resistor with the 2 screws.

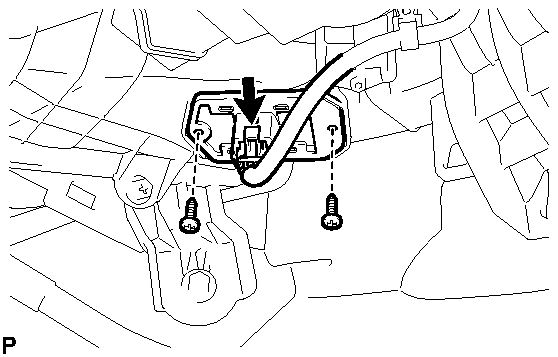

      Fig 1: Remove/Install Blower Resistor
      GTY183178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover)  . Refer to INSTALLATION - Step 10
