Navigation Antenna: Installation: Installation
WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL NAVIGATION ANTENNA ASSEMBLY

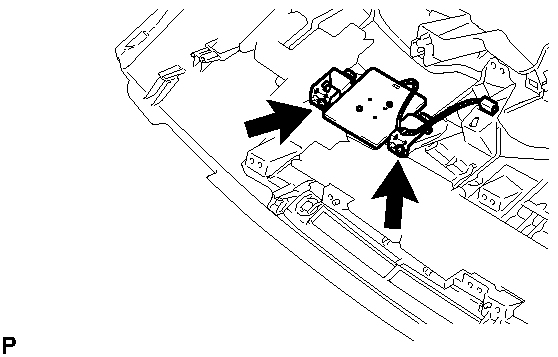

- Install the navigation antenna assembly with the 2 screws.
- INSTALL HEATER TO REGISTER DUCT ASSEMBLY . Refer to REASSEMBLY - Step 7
- INSTALL DEFROSTER NOZZLE ASSEMBLY . Refer to REASSEMBLY - Step 8
- INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to INSTALLATION
