Combination Meter: Installation: Installation

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector and temporarily install the combination meter assembly.

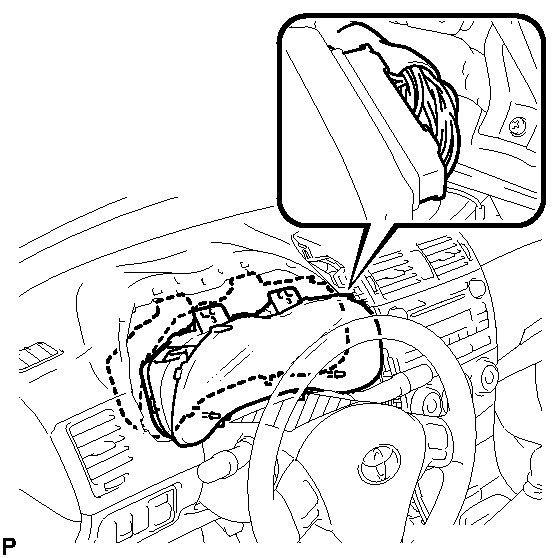

  Fig 1: Identifying Combination Meter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  When installing the combination meter assembly, do not damage the upper instrument panel sub-assembly or combination meter assembly.
2. Engage the 2 guides.

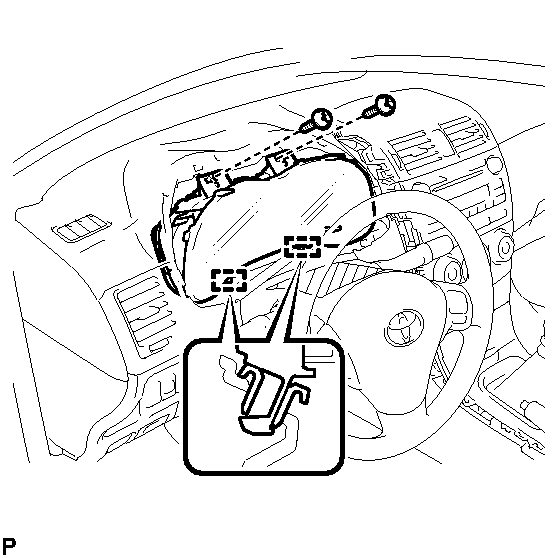

  Fig 2: Identifying Combination Meter Assembly, Guides And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - When installing the combination meter assembly, be careful not to break the guide.
  - When installing the combination meter assembly, insert the guides securely into the holes on the upper instrument panel sub-assembly.
3. Install the combination meter assembly with the 2 screws.
INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
1. Engage the guide, claw and 3 clips, and install the instrument cluster finish panel assembly.

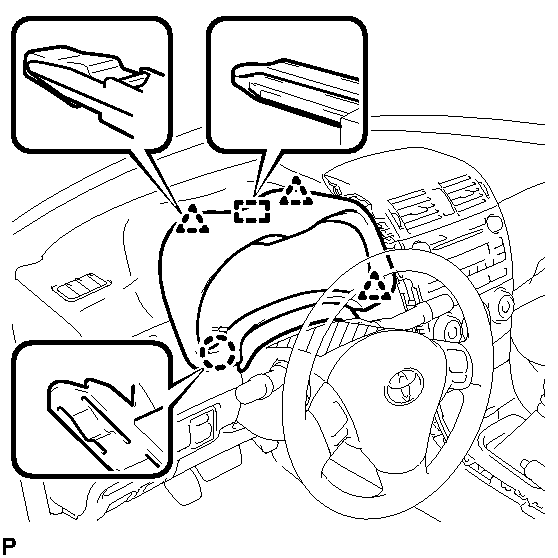

  Fig 3: Identifying Instrument Cluster Finish Panel Assembly, Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the applied protective tape on the steering column cover.
INSTALL INSTRUMENT PANEL FINISH PANEL END LH . Refer to INSTALLATION - Step 13
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH . Refer to INSTALLATION - Step 15
