Knock Sensor: Installation: Installation

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL KNOCK SENSOR

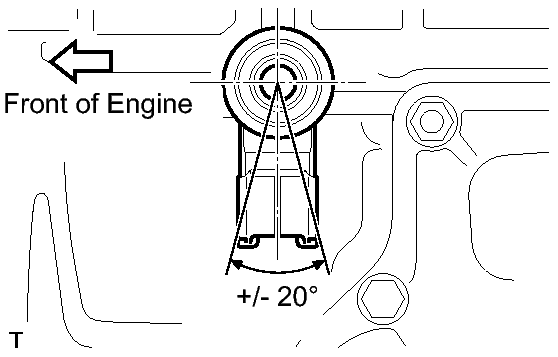

1. Install the knock sensor with the bolt as shown in the illustration.

  Fig 1: Identifying Knock Sensor & Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
2. Connect the knock sensor connector.

  Fig 2: Locating Knock Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Install a new gasket onto the intake manifold.

  Fig 3: Identifying Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the intake manifold and intake manifold stay with the 4 bolts and 2 nuts.

  Fig 4: Locating Bolts And Nuts And Intake Manifold Stay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)
3. Connect the 2 wire harness clamps.

  Fig 5: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the 2 wire harness clamps.

  Fig 6: Locating Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the ventilation hose.

  Fig 7: Locating Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the 2 hoses.

  Fig 8: Locating Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the wire harness clamp and install the wire harness bracket with the bolt.

  Fig 9: Locating Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 8 ft.*lbf)
8. Connect the 2 water by-pass hoses and the throttle body connector.

  Fig 10: Locating Throttle Body Connector And Water By-Pass Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP SUB-ASSEMBLY See step 2
ADD ENGINE COOLANT . Refer to REPLACEMENT - Step 2
INSPECT FOR COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL NO. 2 CYLINDER HEAD COVER . Refer to INSTALLATION - Step 85
