Entry Lock And Unlock Switch: Inspection: Inspection
WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

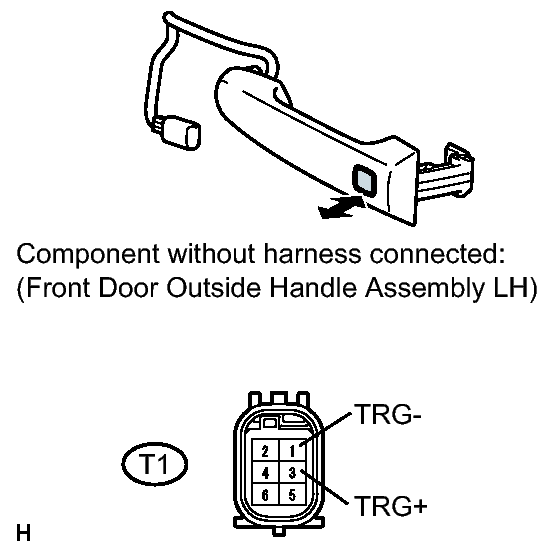

- INSPECT FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
Tester Connection Condition Specified Condition T1-1 (TRG-) - T1-3 (TRG+) Lock switch not pushed 10 kΩ or higher T1-1 (TRG-) - T1-3 (TRG+) Lock switch pushed Below 1 Ω If the result is not specified, replace the front door outside handle assembly LH.
- Measure the resistance according to the value(s) in the table below.

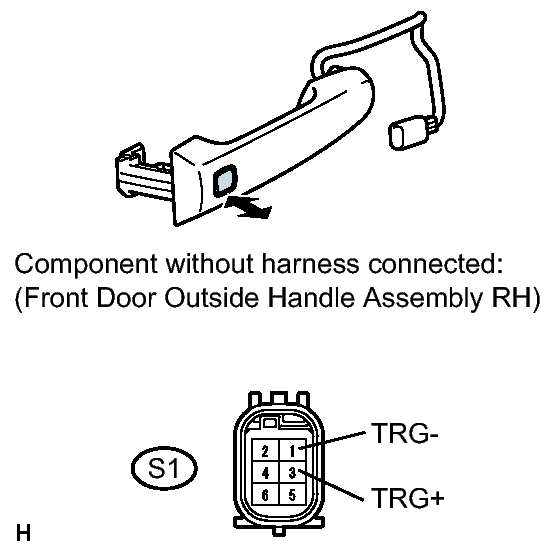

- INSPECT FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
Tester Connection Condition Specified Condition S1-1 (TRG-) - S1-3 (TRG+) Lock switch not pushed 10 kΩ or higher S1-1 (TRG-) - S1-3 (TRG+) Lock switch pushed Below 1 Ω If the result is not specified, replace the front door outside handle assembly RH.
- Measure the resistance according to the value(s) in the table below.
