Stereo Jack Adapter Assembly: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STEREO JACK ADAPTER ASSEMBLY
    1. Engage the 2 claws and install the stereo jack adapter assembly.

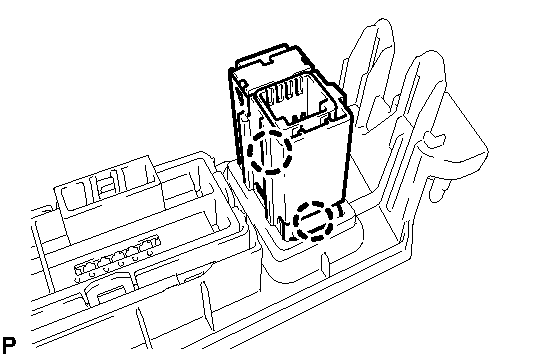

      Fig 1: Identifying Claws On Stereo Jack Adapter Assembly
      GTY208417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL HOLE COVER ASSEMBLY  . Refer to INSTALLATION - Step 19
  3. INSTALL INSTRUMENT PANEL BOX ASSEMBLY  . Refer to INSTALLATION - Step 20
  4. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 21
  5. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 22
  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 23
  7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 24
  8. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH  . Refer to INSTALLATION - Step 15
  9. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH  . Refer to INSTALLATION - Step 16
