Navigation Receiver: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

EJECT MAP DISC
1. Turn the ignition switch to ON.
2. Push the "OPEN" button.
3. Push the "MAP" button to eject the map disc.
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH . Refer to REMOVAL - Step 3
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH . Refer to REMOVAL - Step 4
REMOVE INSTRUMENT PANEL FINISH PANEL END LH . Refer to REMOVAL - Step 5
REMOVE INSTRUMENT PANEL FINISH PANEL END RH . Refer to REMOVAL - Step 6
REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY . Refer to REMOVAL - Step 7
REMOVE NAVIGATION RECEIVER WITH BRACKET
1. Remove the 4 bolts.

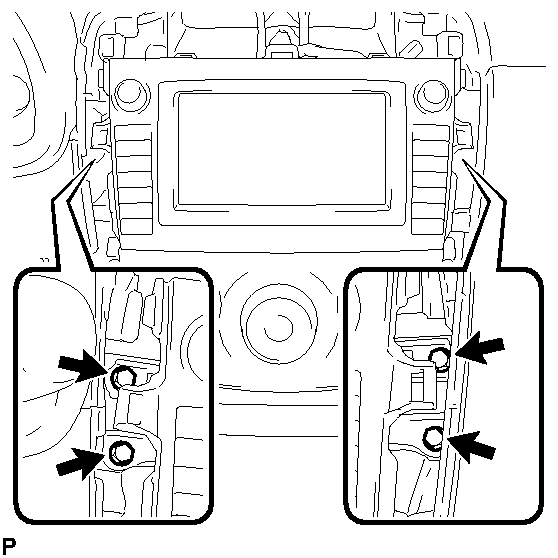

  Fig 1: Identifying Navigation Receiver 4 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the navigation receiver with bracket toward the rear of the vehicle and disengage the 4 clips.

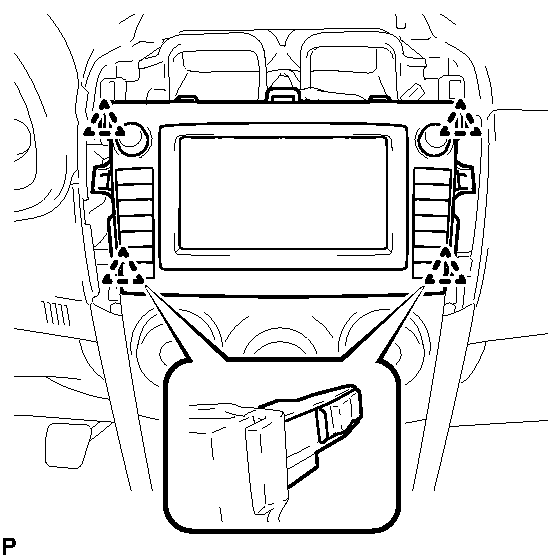

  Fig 2: Identifying Navigation Receiver 4 Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect each connector and remove the navigation receiver with bracket.
REMOVE NO. 2 RADIO BRACKET
1. Remove the 4 screws and No. 2 radio bracket.

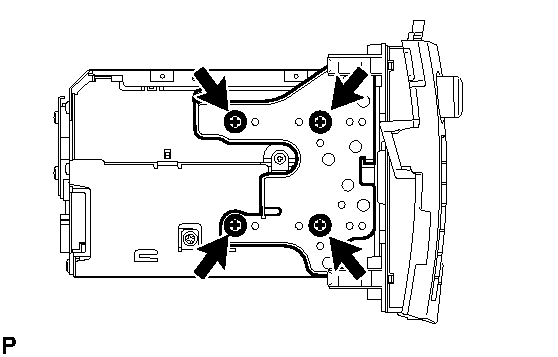

  Fig 3: Identifying No. 2 Radio Bracket & 4 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 RADIO BRACKET
1. Remove the 4 screws and No. 1 radio bracket.

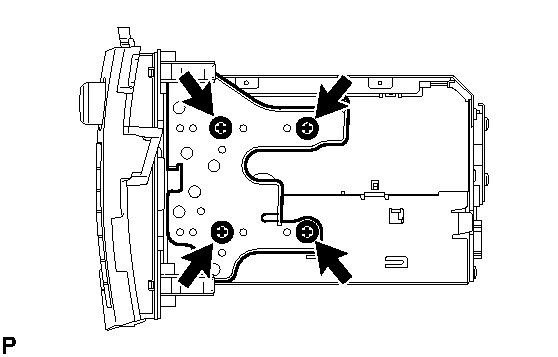

  Fig 4: Identifying No. 1 Radio Bracket & 4 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NAVIGATION RECEIVER ASSEMBLY
