ELECTRICAL KEY OSCILLATOR (for Front Side): Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

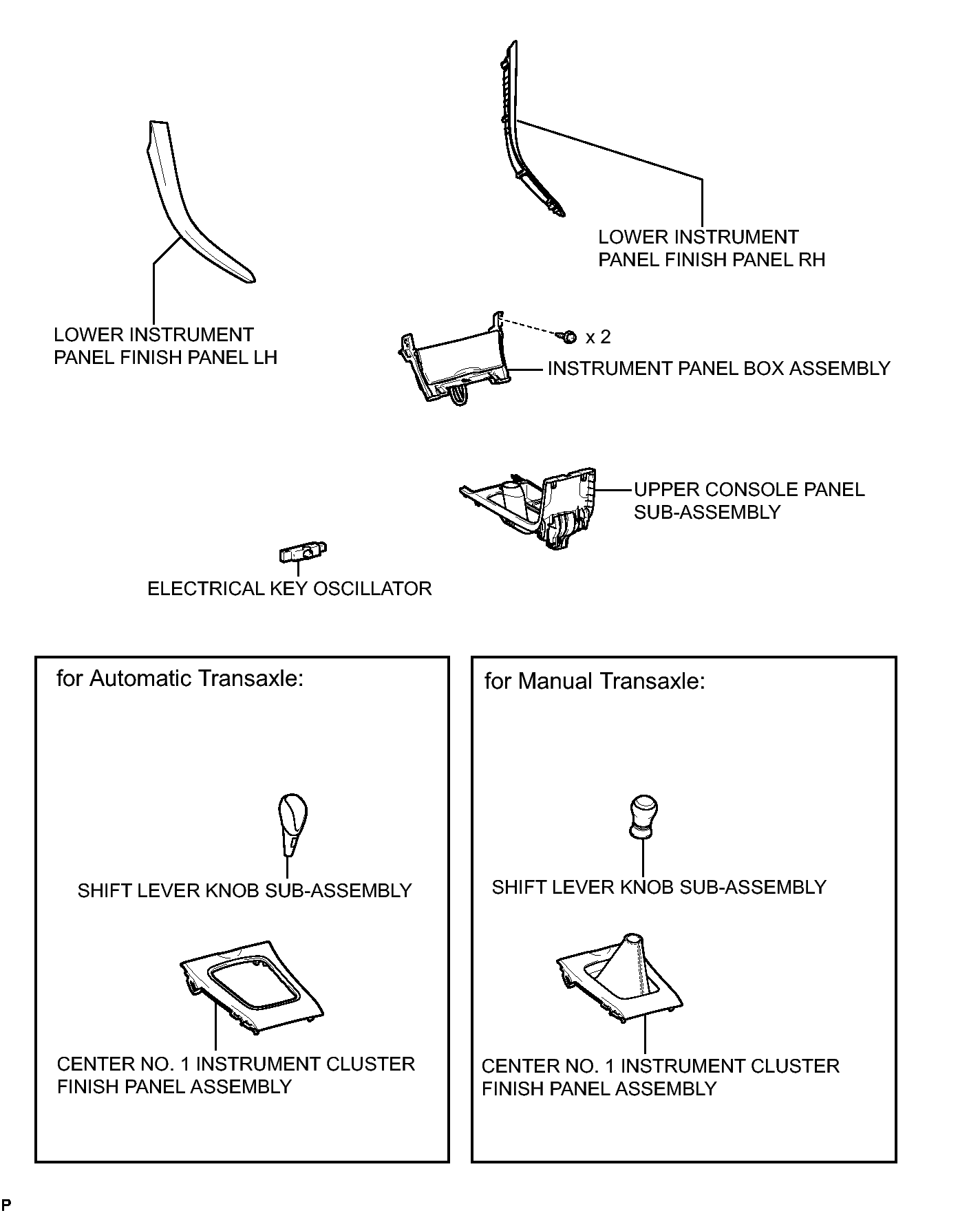

Fig 1: Identifying Electrical Key Oscillator Replacement Components Locations (Front Side)
GTY290586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
