Engine Hood Courtesy Switch: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR GRILLE PROTECTOR  . Refer to REMOVAL - Step 1
  2. REMOVE NO. 4 ENGINE UNDER COVER (for 2AZ-FE)  . Refer to REMOVAL - Step 2
  3. REMOVE FRONT BUMPER ASSEMBLY (for 2AZ-FE)  . Refer to REMOVAL - Step 3
  4. REMOVE FRONT BUMPER ASSEMBLY (for 2ZR-FE)  . Refer to REMOVAL - Step 4
  5. REMOVE HOOD LOCK ASSEMBLY
    1. Remove the 3 bolts from the hood lock assembly.

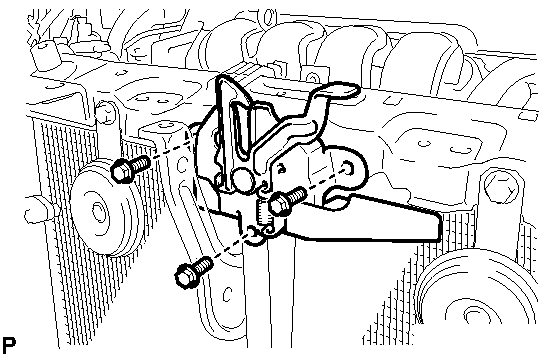

      Fig 1: Identifying Hood Lock Assembly Bolts
      GTY199652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable and remove the hood lock assembly.
      Fig 2: Identifying Hood Lock Control Cable
      GTY190412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
