Entry Lock And Unlock Switch: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY
    1. Insert the front end of the front door outside handle assembly into the front door outside handle frame.

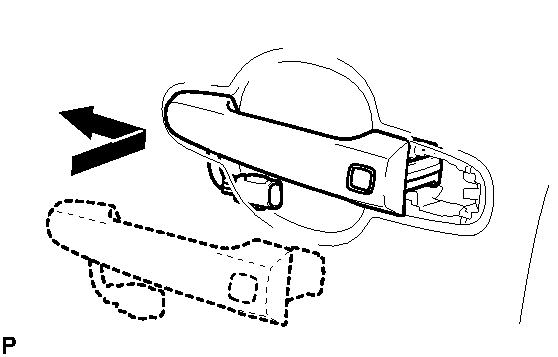

      Fig 1: Installing Front Door Outside Handle Assembly
      GTY197777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the rear end of the front door outside handle assembly into the front door outside handle frame. Next, slide the front door outside handle assembly toward the front of the vehicle to install it.
    3. Connect the connector.

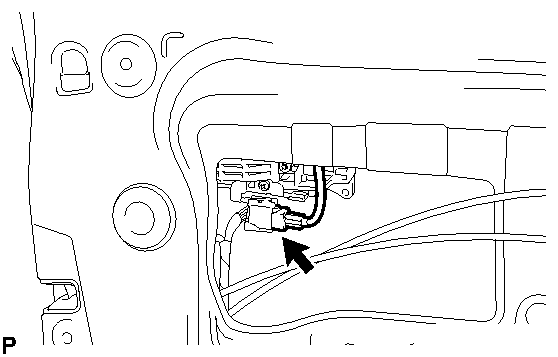

      Fig 2: Locating Front Door Outside Handle Assembly Connector
      GTY197775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT DOOR OUTSIDE HANDLE COVER  . Refer to REASSEMBLY - Step 20
  3. INSTALL FRONT DOOR SERVICE HOLE COVER  . Refer to REASSEMBLY - Step 31
  4. INSTALL FRONT DOOR TRIM BRACKET  . Refer to REASSEMBLY - Step 32
  5. INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY  . Refer to REASSEMBLY - Step 39
  6. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY  . Refer to REASSEMBLY - Step 40
  7. INSTALL FRONT ARMREST UPPER BASE PANEL (for Driver Side without Power Window)  . Refer to REASSEMBLY - Step 45
  8. INSTALL FRONT DOOR INSIDE HANDLE BEZEL  . Refer to REASSEMBLY - Step 46
