Glass Breakage Sensor: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL GLASS BREAKAGE SENSOR
    1. Engage the 2 claws and install the glass breakage sensor.

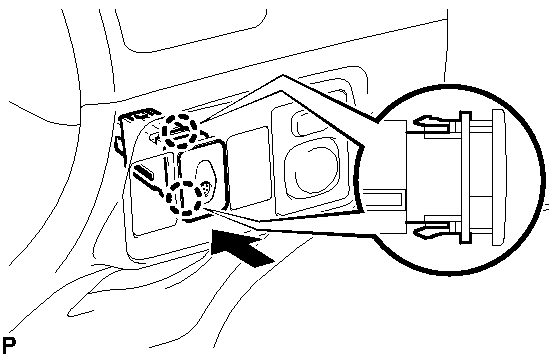

      Fig 1: Identifying Glass Breakage Sensor & Claws
      GTY175127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 4
