Security Indicator Light Assembly: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH  . Refer to REMOVAL - Step 3
  2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH  . Refer to REMOVAL - Step 4
  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  . Refer to REMOVAL - Step 21
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  . Refer to REMOVAL - Step 22
  5. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  . Refer to REMOVAL - Step 23
  6. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  . Refer to REMOVAL - Step 24
  7. REMOVE INSTRUMENT PANEL BOX ASSEMBLY  . Refer to REMOVAL - Step 25
  8. REMOVE INSTRUMENT PANEL HOLE COVER  . Refer to REMOVAL - Step 26
  9. REMOVE TELLTALE LIGHT ASSEMBLY
    1. Disengage the 2 claws and remove the telltale light assembly.

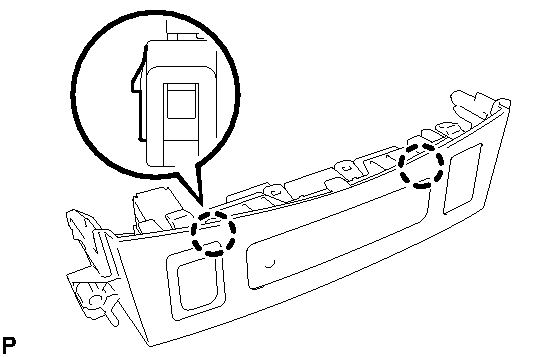

      Fig 1: Identifying Claws On Telltale Light Assembly
      GTY189300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
