On-Vehicle Inspection

INSPECT FRONT PASSENGER AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)
1. Perform a diagnostic system check. Refer to DTC CHECK / CLEAR .
2. With the front passenger airbag assembly installed on the vehicle, perform a visual check. If there are any following defects, replace the instrument panel with a new one:

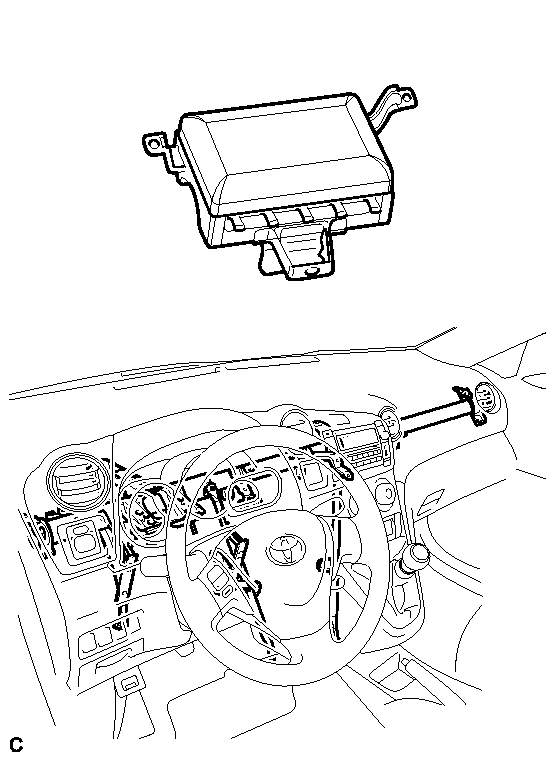

  Fig 1: Identifying Front Passenger Airbag Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Cuts, minute cracks or marked discoloration on the instrument panel around the front passenger airbag assembly.
INSPECT FRONT PASSENGER AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)
1. Perform a diagnostic system check. Refer to DTC CHECK / CLEAR .
2. With the front passenger airbag assembly removed from the vehicle, perform a visual check. If there are any following defects, replace the front passenger airbag assembly, instrument panel or instrument panel reinforcement with a new one:

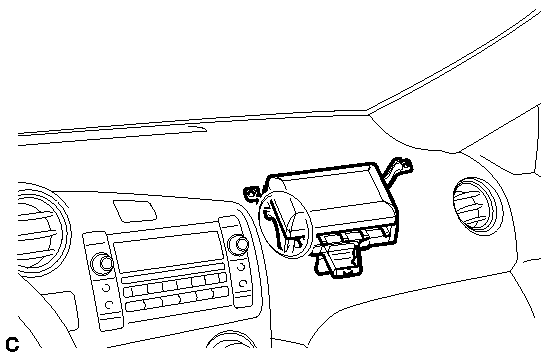

  Fig 2: Identifying Front Passenger Airbag Assembly, Instrument Panel & Instrument Panel Reinforcement
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Cuts, minute cracks or marked discoloration on the front passenger airbag assembly.
  - Cracks or other damage to the connectors.
  - Deformation or cracks on the instrument panel or instrument panel reinforcement.
  WARNING:
  Be sure to follow the correct removal and installation procedures for the front passenger airbag assembly.
