Washer Level Warning Switch: Removal: Removal

REMOVE FRONT WHEEL RH
REMOVE FRONT FENDER LINER RH See step 2
DRAIN WASHER FLUID
1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

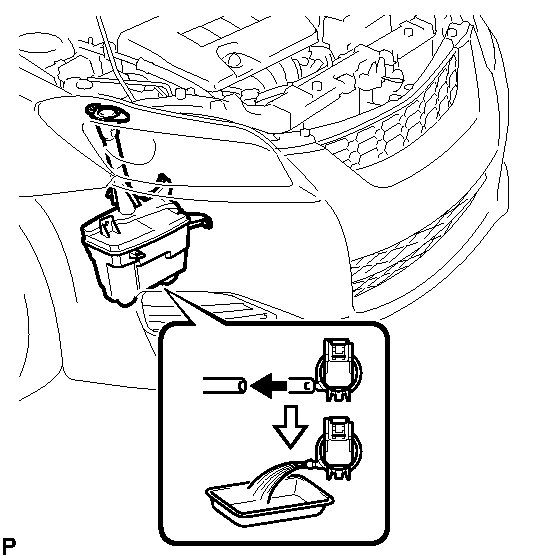

  Fig 1: Draining Washer Fluid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LEVEL WARNING SWITCH ASSEMBLY
1. Disconnect the connector.

  Fig 2: Locating Level Warning Switch Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the level warning switch assembly.
