Washer Nozzle: Adjustment: Adjustment

  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY  See step  1
  2. ADJUST WASHER NOZZLE SUB-ASSEMBLY
    1. Select a washer nozzle sub-assembly so that the washer fluid spray area is as specified.

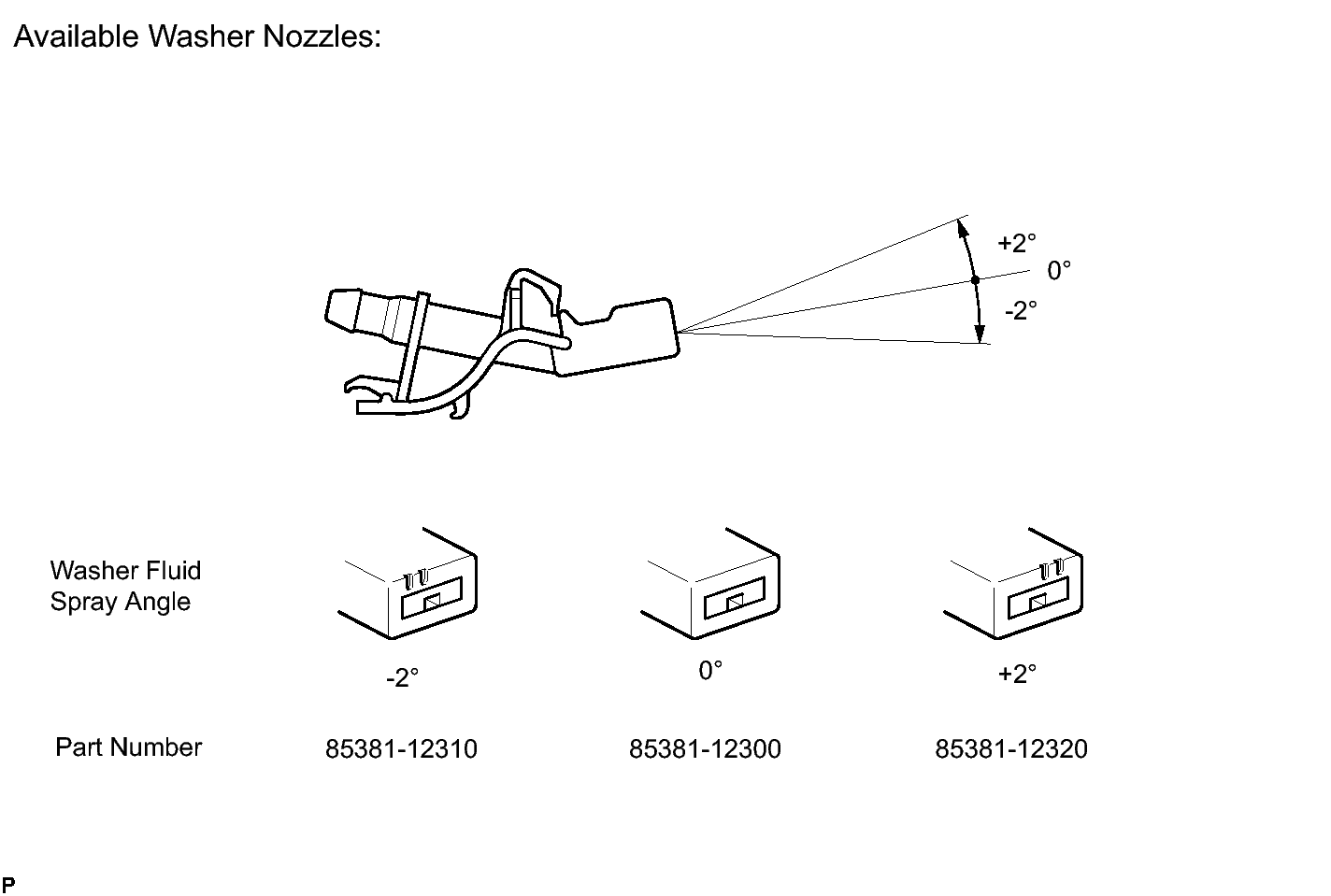

      Fig 1: Identifying Washer Fluid Spray Angle
      GTY179761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL WASHER NOZZLE SUB-ASSEMBLY  See step  1
