Tire Pressure Warning System: Initialization: Initialization

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION OF INITIALIZATION
1. Perform initialization in the following cases:
  - Before delivery of a new vehicle.
  - After replacement of the tire pressure warning ECU*.
  - After a tire rotation (for 4WD models).
  - After replacement of any of the tire pressure warning valve and transmitters*.
  - After a different size or type of tire is fitted.
  *: Perform initialization after transmitter ID registration is completed. Refer to REGISTRATION .
2. Before initialization
  1. Set all tire pressures to the specified value(s). Refer to PRECAUTION .
    NOTE:
    Make sure the tires are cold.

INITIALIZATION PROCEDURE

Adjust all tire pressures to the standard tire inflation pressure, as indicated on the tire and loading information label on the vehicle.
Turn the ignition switch to ON.
Push and hold the tire pressure warning reset switch for 3 seconds or more so that the tire pressure warning light blinks 3 times.

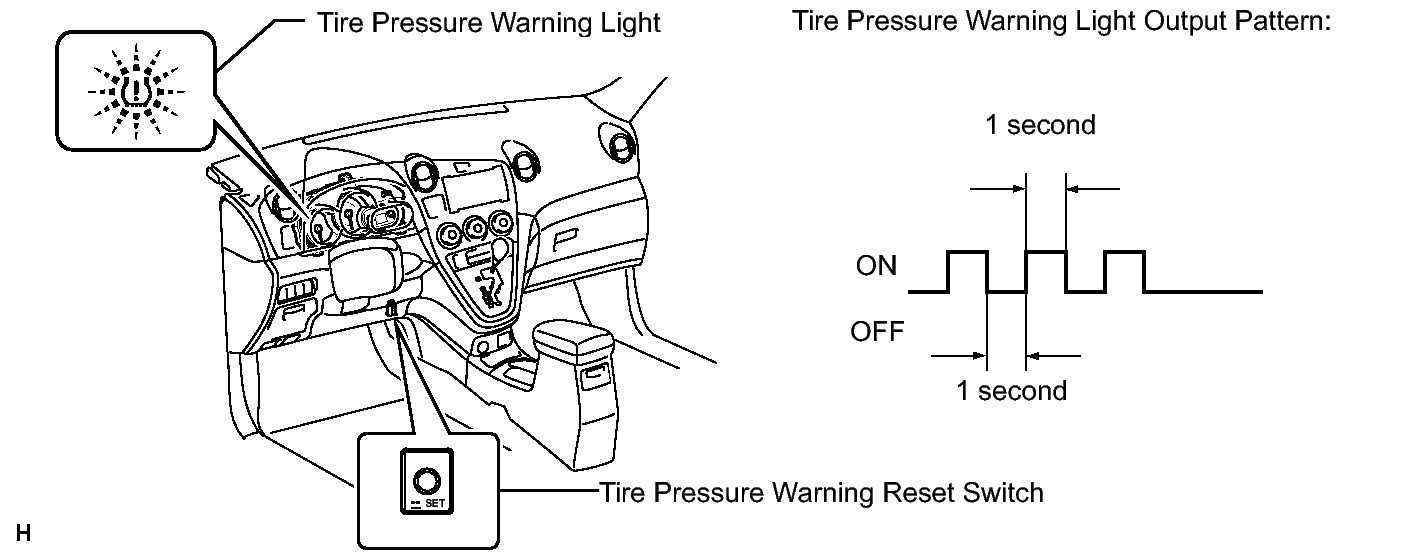

Fig 1: Identifying Tire Pressures Warning Light With Blinking Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Turn the ignition switch off.
Connect the Techstream to the DLC3.
Turn the ignition switch to ON.
Turn the Techstream on.
Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
Check that initialization has been completed.

Confirm that tire pressure data of all wheels are displayed on the Techstream.

Fig 2: Checking CG & TC Of DLC3 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Initialization normally completes within 2 or 3 minutes.
If initialization did not complete successfully, DTC C2177/77 will be set after a vehicle speed 8 km/h (5 mph) or more continues for 20 minutes or more.
Initialization can be terminated by connecting terminals TC and CG of the DLC3.

TIRE PRESSURE MONITOR

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
ID1 Tire Inflation Pressure	ID1 tire inflation pressure/ min.: Absolute pressure/ 0 kPa (0 kgf/cm² , 0 psi), Relative pressure/ -100 kPa (-1.0 kgf/cm² , -14 psi) max.: Absolute pressure/ 638 kPa (6.4 kgf/cm² , 93 psi), Relative pressure/ 538 kPa (5.4 kgf/cm² , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm² , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm² , -14 psi) is displayed for relative pressure, data has not been received*.
ID2 Tire Inflation Pressure	ID2 tire inflation pressure/ min.: Absolute pressure/ 0 kPa (0 kgf/cm² , 0 psi), Relative pressure/ -100 kPa (-1.0 kgf/cm² , -14 psi) max.: Absolute pressure/ 638 kPa (6.4 kgf/cm² , 93 psi), Relative pressure/ 538 kPa (5.4 kgf/cm² , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm² , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm² , -14 psi) is displayed for relative pressure, data has not been received*.
ID3 Tire Inflation Pressure	ID3 tire inflation pressure/ min.: Absolute pressure/ 0 kPa (0 kgf/cm² , 0 psi), Relative pressure/ -100 kPa (-1.0 kgf/cm² , -14 psi) max.: Absolute pressure/ 638 kPa (6.4 kgf/cm² , 93 psi), Relative pressure/ 538 kPa (5.4 kgf/cm² , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm² , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm² , -14 psi) is displayed for relative pressure, data has not been received*.
ID4 Tire Inflation Pressure	ID4 tire inflation pressure/ min.: Absolute pressure/ 0 kPa (0 kgf/cm² , 0 psi), Relative pressure/ -100 kPa (-1.0 kgf/cm² , -14 psi) max.: Absolute pressure/ 638 kPa (6.4 kgf/cm² , 93 psi), Relative pressure/ 538 kPa (5.4 kgf/cm² , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm² , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm² , -14 psi) is displayed for relative pressure, data has not been received*.

HINT:

The initialization is completed when the "ID Tire Inflation Pressure" display shows the correct pressures.
*: It may take about 2 or 3 minutes until the values are displayed. If the values are not displayed after a few minutes, perform troubleshooting according to the inspection procedure for DTCs C2121/21 to C2124/24. Refer to DTC C2121/21: No Signal from Transmitter ID1; DTC C2122/22: No Signal from Transmitter ID2; DTC C2123/23: No Signal from Transmitter ID3; DTC C2124/24: No Signal from Transmitter ID4; DTC C2181/81: Transmitter ID1 not Received (Test Mode DTC); DTC C2182/82: Transmitter ID2 not Received (Test Mode DTC); DTC C2183/83: Transmitter ID3 not Received (Test Mode DTC); DTC C2184/84: Transmitter ID4 not Received (Test Mode DTC) .
