Fog Light Assembly: Installation: Installation
WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

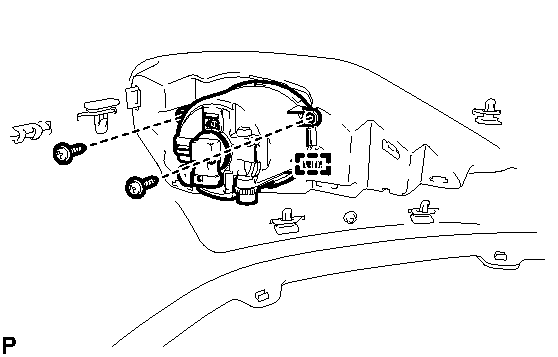

- INSTALL FOG LIGHT ASSEMBLY
- Engage the guide.
- Install the fog light assembly with the 2 screws.
- INSTALL FRONT BUMPER ASSEMBLY (w/o Front Spoiler) . Refer to INSTALLATION - Step 1
- INSTALL FRONT BUMPER ASSEMBLY (w/ Front Spoiler) . Refer to INSTALLATION - Step 2
- VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT See step 1
- PREPARATION FOR FOG LIGHT AIMING See step 2
- INSPECT FOG LIGHT AIMING See step 3
- ADJUST FOG LIGHT AIMING See step 4
