Rear Combination Light Assembly: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR COMBINATION LIGHT ASSEMBLY
1. Engage the guide and install the rear combination light assembly.

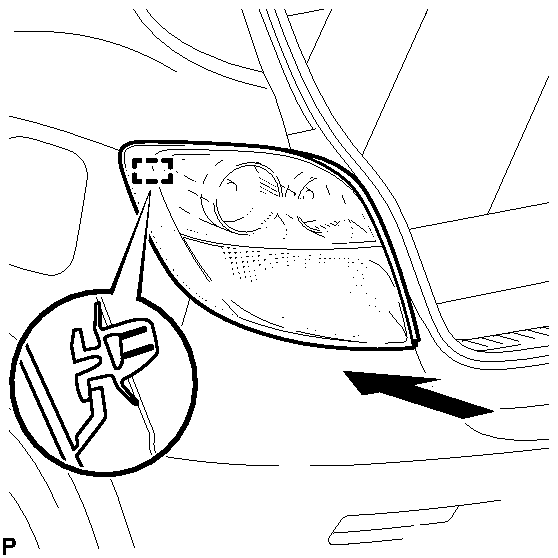

  Fig 1: Engaging Rear Combination Light Assembly Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 3 nuts.

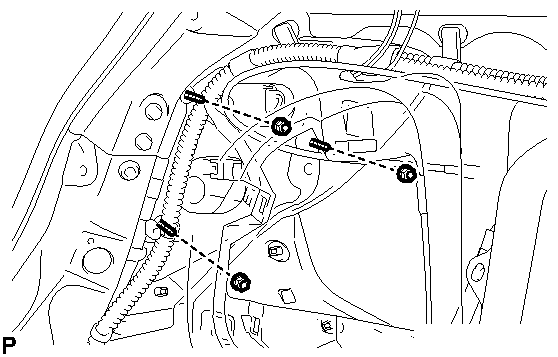

  Fig 2: Remove/Install Rear Combination Light Assembly Harness Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)
3. Engage the clamp and connect the connector.

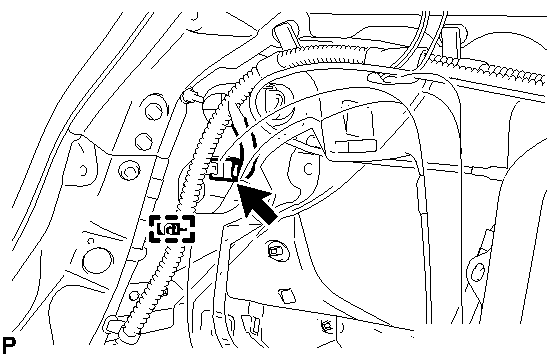

  Fig 3: Locating Rear Combination Light Assembly Clamp And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR COMBINATION LIGHT SERVICE COVER LH (for LH Side) . Refer to INSTALLATION - Step 23
INSTALL REAR COMBINATION LIGHT SERVICE COVER RH (for RH Side)
1. Engage the guide.

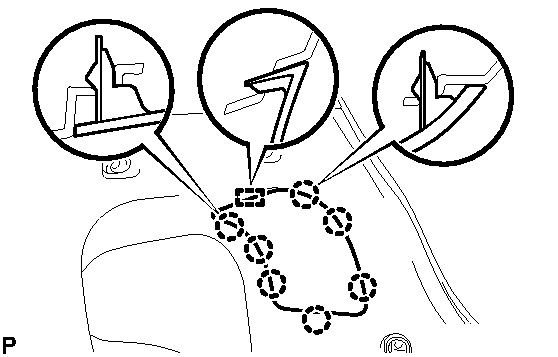

  Fig 4: Engaging Rear Combination Light Service Cover RH And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 7 claws and install the rear combination light service cover RH.
