INSTALL STOP LIGHT SWITCH ASSEMBLY
1. Insert the stop light switch assembly until the rod hits the cushion.

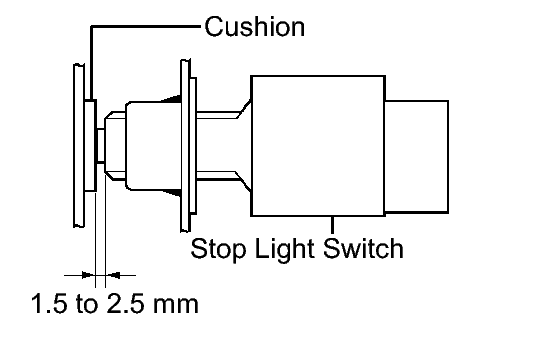

  Fig 1: Installing Stop Light Switch Assembly Until Rod Hits Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not depressed.
2. Make a quarter turn clockwise to install the stop light switch assembly.

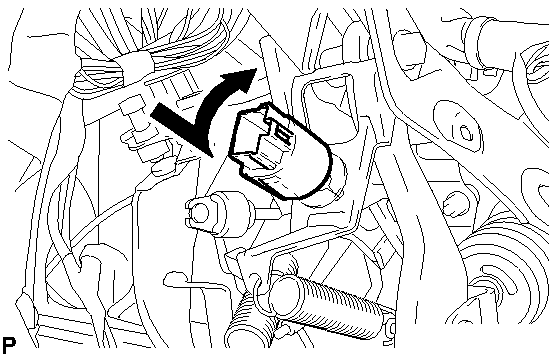

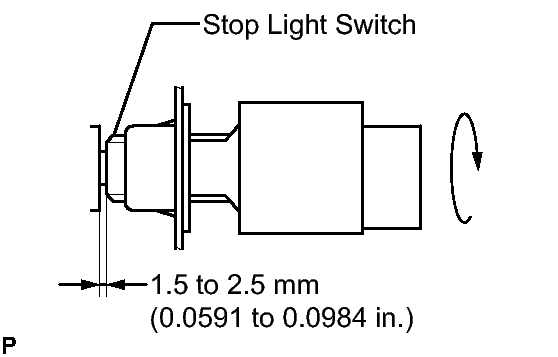

  Fig 2: Turning Quarter Clockwise To Install Stop Light Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

  or less

  NOTE:
  When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not depressed.
3. Connect the connector.

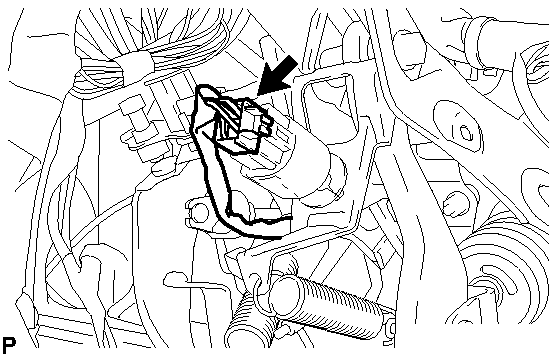

  Fig 3: Locating Stop Light Switch Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check the protrusion of the rod.

  Fig 4: Checking Protrusion Of Rod
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Protrusion of the rod

  1.5 to 2.5 mm (0.0591 to 0.0984 in.)

  If the protrusion is not within the specified range, adjust it.

  NOTE:
  Do not depress the brake pedal.
