Front Blower Motor: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BLOWER MOTOR SUB-ASSEMBLY (w/o PTC Heater)
1. Install the blower motor sub-assembly with the 3 screws.

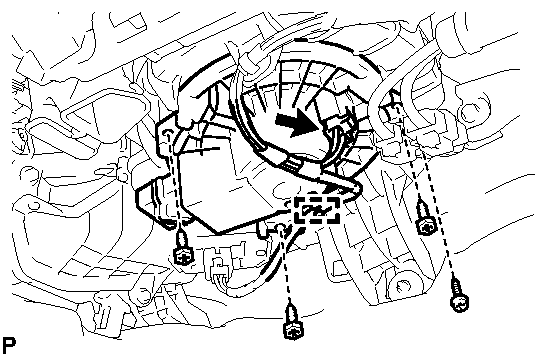

  Fig 1: Remove/Install Blower Motor Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
3. Engage the clamp.
INSTALL BLOWER MOTOR SUB-ASSEMBLY (w/ PTC Heater)
1. Install the blower motor sub-assembly with the 3 screws.

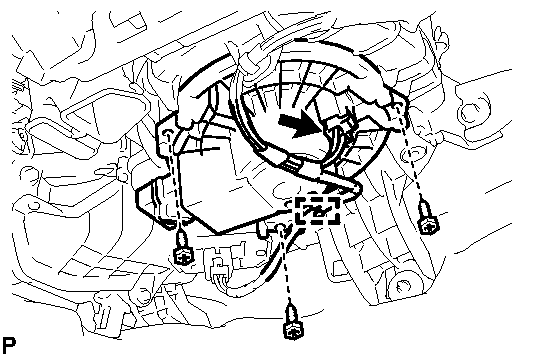

  Fig 2: Remove/Install Blower Motor Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
3. Engage the clamp.
4. Install the quick heater connector screw.
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover) . Refer to INSTALLATION - Step 10
