Front Door Speaker: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
1. Using an air riveter or a hand riveter, install the front No. 1 speaker assembly with 3 new rivets.

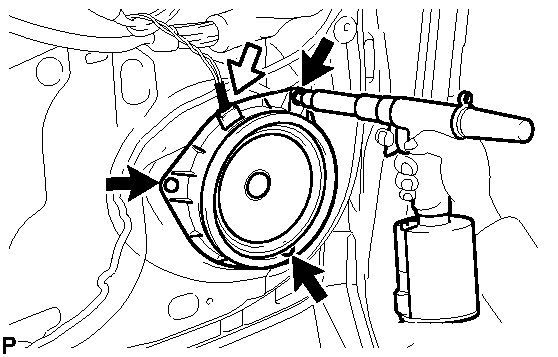

  Fig 1: Installing Front No. 1 Speaker Assembly With Rivets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:

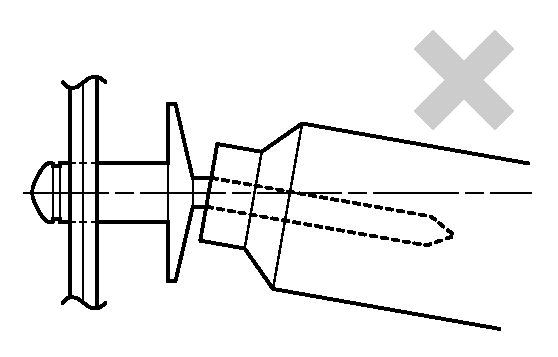

  Fig 2: Precaution For Installation Of Rivets (1 Of 3)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
  - Confirm that the rivets are seated properly against the speaker.

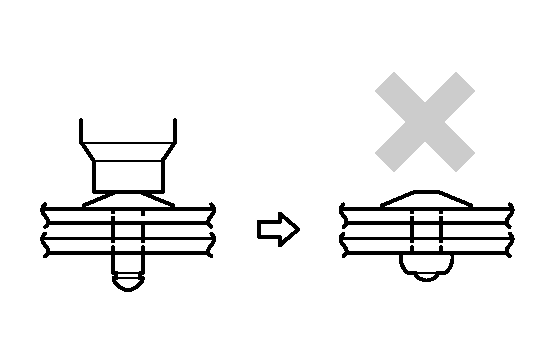

    Fig 3: Precaution For Installation Of Rivets (2 Of 3)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Do not tilt the riveter when installing the rivet to the speaker.
  - Do not leave any clearance between the rivet head and speaker.
  - Do not leave any clearance between the speaker and door. Firmly hold the 2 items together while installing the rivet.

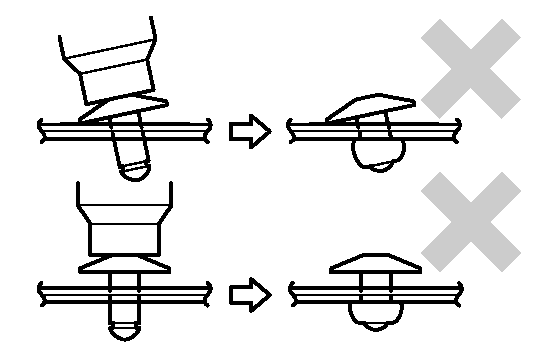

    Fig 4: Precaution For Installation Of Rivets (3 Of 3)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for 6 Speakers)
1. Engage the 3 claws and install the front No. 2 speaker assembly.

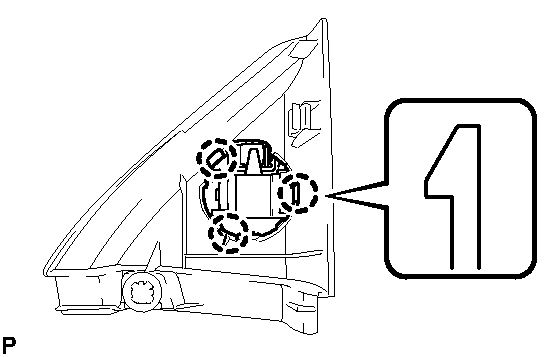

  Fig 5: View Of Front No. 2 Speaker Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH (for 6 Speakers) . Refer to REASSEMBLY - Step 34
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY . Refer to REASSEMBLY - Step 36
INSTALL FRONT ARMREST UPPER BASE PANEL (w/o Power Window) . Refer to REASSEMBLY - Step 40
INSTALL FRONT ARMREST UPPER BASE PANEL (w/ Power Window) . Refer to REASSEMBLY - Step 41
INSTALL FRONT DOOR INSIDE HANDLE BEZEL . Refer to REASSEMBLY - Step 42
INSTALL FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Window) . Refer to REASSEMBLY - Step 43
