INSTALL MAP LIGHT BULB (w/o Sliding Roof)
1. Install the 2 map light bulbs to the 2 map light sockets.
2. Turn the 2 map light bulbs and the 2 map light sockets in the direction indicated by the arrow and install them as a unit.

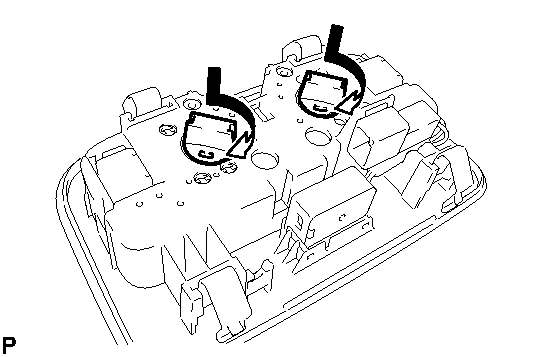

  Fig 1: Installing Map Light Bulb (w/o Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MAP LIGHT BULB (w/ Sliding Roof)
1. Install the 2 map light bulbs to the 2 map light sockets.
2. Turn the 2 map light bulbs and the 2 map light sockets in the direction indicated by the arrow and install them as a unit.

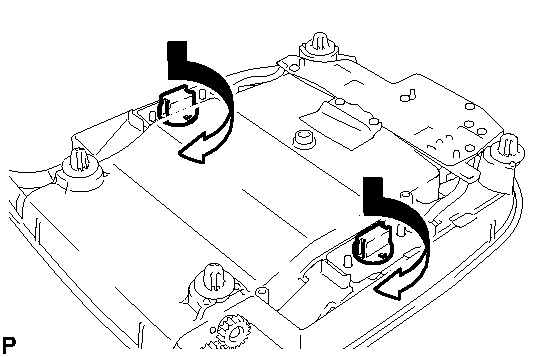

  Fig 2: Installing Map Light Bulb (w/ Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)
1. Connect the connector.
2. Engage the 4 clips and install the map light assembly.

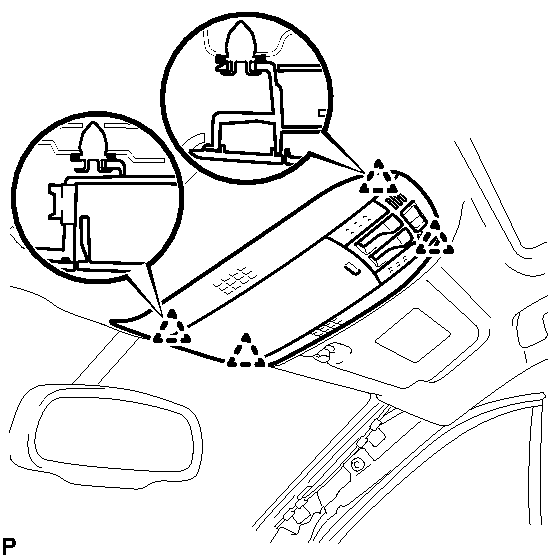

  Fig 3: Identifying Map Light Assembly And Clips (w/o Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)
1. Connect the connector.
2. Engage the 4 clips and install the map light assembly.

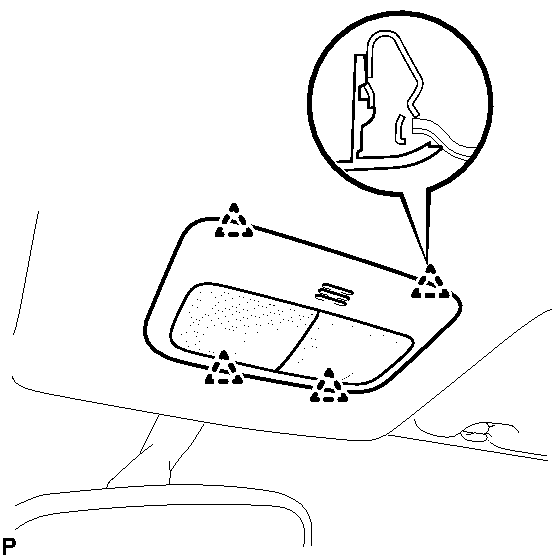

  Fig 4: Identifying Map Light Assembly And Clips (w/ Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
