Transponder Key Ecu: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TRANSPONDER KEY ECU
1. Install the transponder key ECU with the bolt.

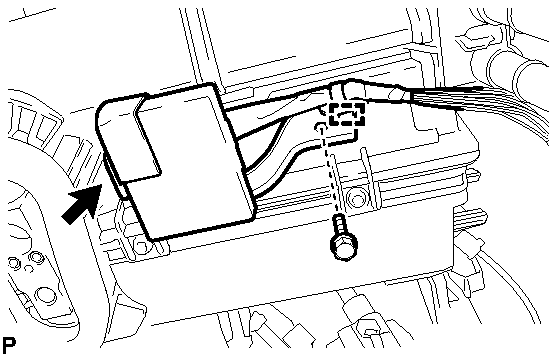

  Fig 1: Remove/Install Transponder Key ECU And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the clamp.
3. Connect the connector.
INSTALL AIR CONDITIONING UNIT
1. Install the air conditioning unit. Refer to INSTALLATION .
REGISTER ECU COMMUNICATION ID
NOTE:
After replacing the transponder key ECU, perform initialization. Refer to REGISTRATION .
REGISTER KEY
NOTE:
After replacing the transponder key ECU, perform initialization. Refer to REGISTRATION .
