Rear Light Assembly: Installation: Installation

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR LIGHT ASSEMBLY

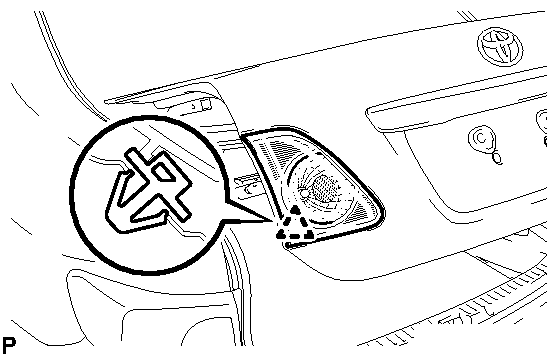

    1. Engage the clip.
      Fig 1: Identifying Rear Light Assembly Clip
      GTY173817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

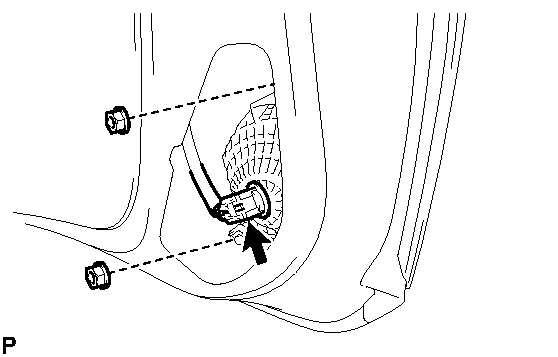

    2. Install the rear light assembly with the 2 nuts.
      Fig 2: Identifying Rear Light Assembly Nuts
      GTY207406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the connector.
  2. INSTALL LUGGAGE COMPARTMENT SIDE COVER

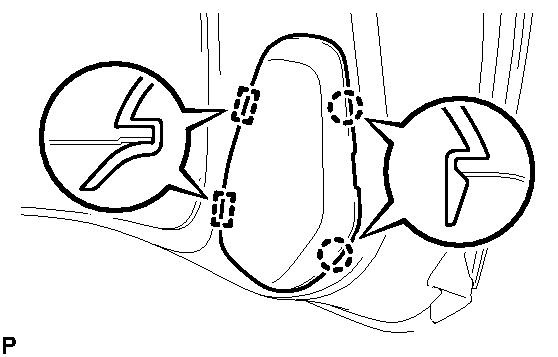

    1. Engage the 2 guides.
      Fig 3: Identifying Luggage Compartment Side Cover Guides And Claws
      GTY208651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws and install the luggage compartment side cover.
