Combination Meter: Disassembly: Disassembly

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COMBINATION METER GLASS
    1. Disengage the 8 claws and remove the combination meter glass.

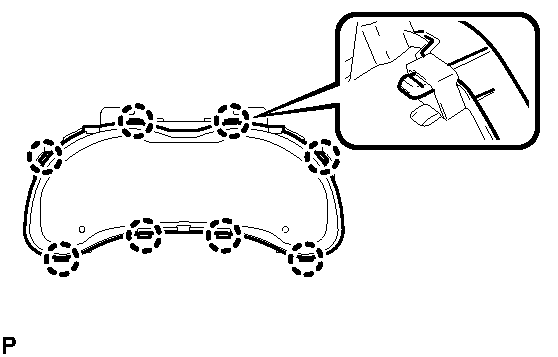

      Fig 1: Identifying Combination Meter Glass And Claws
      GTY189965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
