Wiper Switch: Installation: Installation
WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

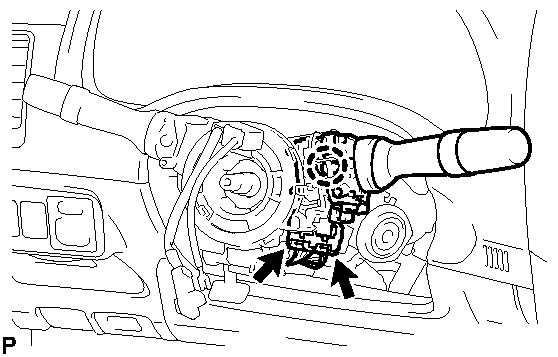

- Engage the claw and install the windshield wiper switch assembly as shown in the illustration.
- Connect the 2 connectors.
- INSTALL UPPER STEERING COLUMN COVER . Refer to INSTALLATION - Step 13
- INSTALL LOWER STEERING COLUMN COVER . Refer to INSTALLATION - Step 14
- INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 9
- ALIGN FRONT WHEELS TO FACE STRAIGHT AHEAD
- ADJUST SPIRAL CABLE . Refer to INSTALLATION - Step 7
- INSTALL STEERING WHEEL ASSEMBLY
Refer to INSTALLATION
