Camshaft Oil Control Valve: Installation: Installation

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Intake camshaft side:
  1. Apply a light coat of engine oil to a new O-ring and install it onto the camshaft timing oil control valve assembly

    Fig 1: Locating Camshaft Timing Oil Control Valve O-Ring (For Intake Camshaft Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE:
    Do not twist the O-ring.
  2. Install the camshaft timing oil control valve assembly and wire harness bracket with the bolt.

    Fig 2: Locating Camshaft Timing Oil Control Valve Bolt (For Intake Camshaft Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  3. Connect the camshaft timing oil control valve assembly connector.
2. Exhaust camshaft side:
  1. Apply a light coat of engine oil to a new O-ring and install it onto the camshaft timing oil control valve assembly.

    Fig 3: Locating Camshaft Timing Oil Control Valve O-Ring (For Exhaust Camshaft Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE:
    Do not twist the O-ring.
  2. Install the camshaft timing oil control valve assembly and wire harness bracket with the bolt.

    Fig 4: Locating Camshaft Timing Oil Control Valve Connector Bolt (For Exhaust Camshaft Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  3. Connect the camshaft timing oil control valve assembly connector.
  4. Install the wire harness bracket with the bolt.

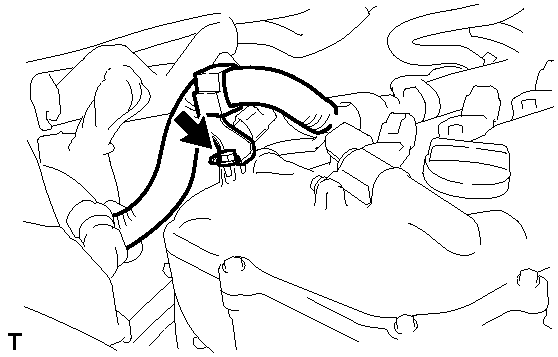

    Fig 5: Locating Wire Harness Bracket Bolt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)
INSPECT FOR OIL LEAK
INSTALL NO. 2 CYLINDER HEAD COVER . Refer to INSTALLATION - Step 85
