Cruise Control Main Switch: Removal: Removal

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
REMOVE LOWER NO. 3 STEERING WHEEL COVER . Refer to REMOVAL - Step 3
REMOVE LOWER NO. 2 STEERING WHEEL COVER . Refer to REMOVAL - Step 4
REMOVE STEERING PAD . Refer to REMOVAL - Step 5
REMOVE CRUISE CONTROL MAIN SWITCH
1. Disconnect the connector.
2. Remove the 2 screws.

  Fig 1: Locating Cruise Control Main Switch Connector And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the switch as shown in the illustration.

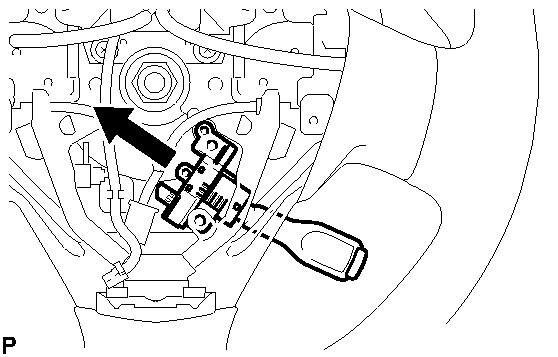

  Fig 2: Removing Cruise Control Main Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
