DTC B2272: Ignition 1 Monitor Malfunction: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Select the item below in the Data List, and read the display on the Techstream.

   HINT:

   When using the Techstream with the engine switch off, turn on and off any of the door courtesy light switches repeatedly at 1.5 second intervals or less until communication between the Techstream and vehicle starts.

   MAIN BODY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   IG1 Relay Monitor (Outside)	Status of IG1 relay monitor (outer) / ON or OFF	ON: Engine switch on (IG) (IG1 relay is ON) OFF: Engine switch off (IG1 relay is OFF)	-

   OK

   "ON" (engine switch on (IG)) appears on the screen.

NG → See step   3

OK: Go to next step

1. Clear the DTC. Refer to DTC CHECK / CLEAR .
2. Turn the engine switch on (IG).
3. After 10 seconds have elapsed, check if the trouble occurs again.

   OK

   DTC B2272 is not output.

NG → REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)

OK → See step   6

1. Remove the IG1 relay from the instrument panel junction block.

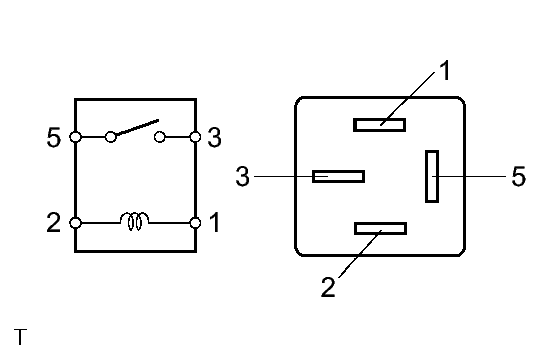

   Fig 1: Inspecting IG1 Relay Of Instrument Panel Junction Block

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 - 5	When battery voltage is not applied to terminals 1 and 2	10 kΩ or higher
   3 - 5	When battery voltage is applied to terminals 1 and 2	Below 1 Ω

NG → REPLACE IG1 RELAY

OK: Go to next step

1. Disconnect the 2F junction block connector.

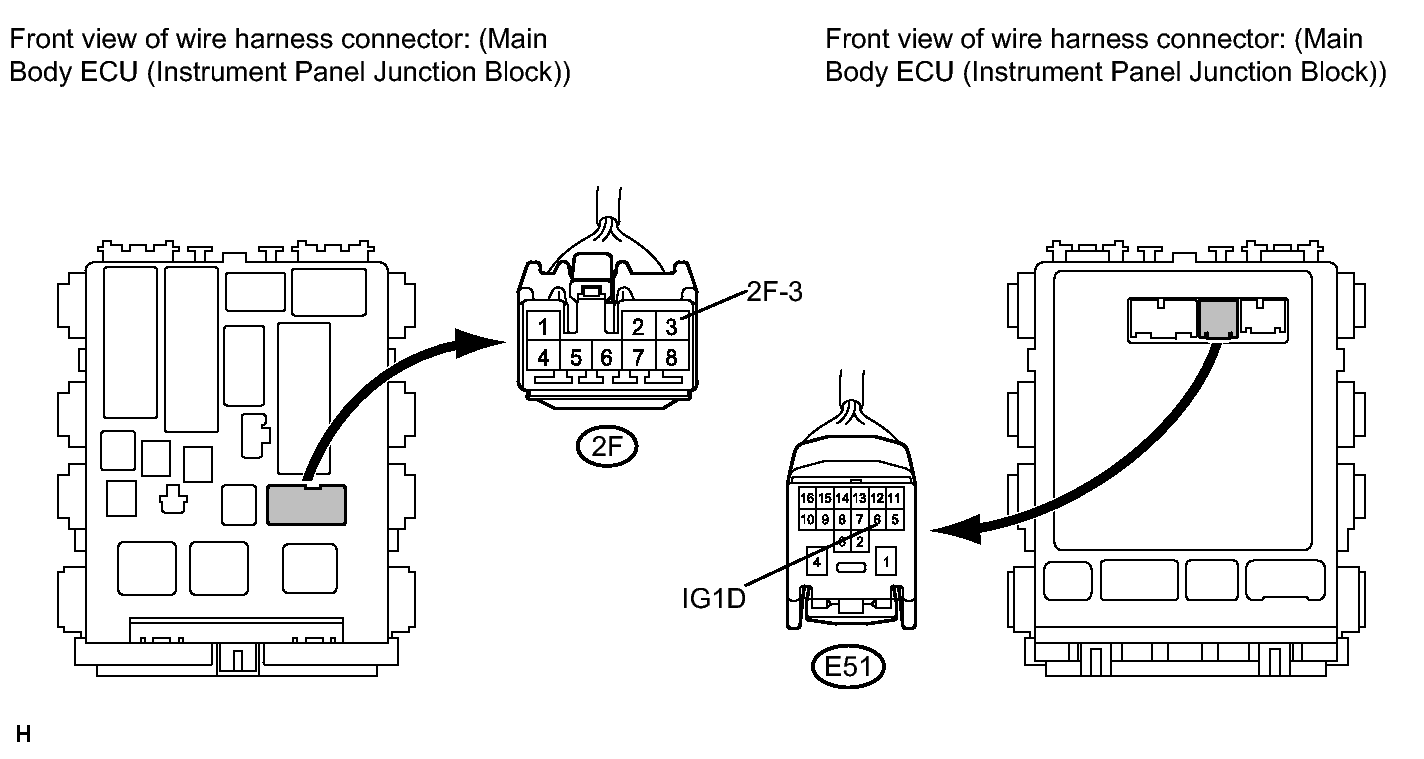

   Fig 2: Identifying 2F Junction Block And E51 ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the E51 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2F-3 - E51-6 (IG1D)	Always	Below 1 Ω
   E51-6 (IG1D) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK - MAIN BODY ECU)

OK: Go to next step

1. Disconnect the 2E and 2G junction block connectors.

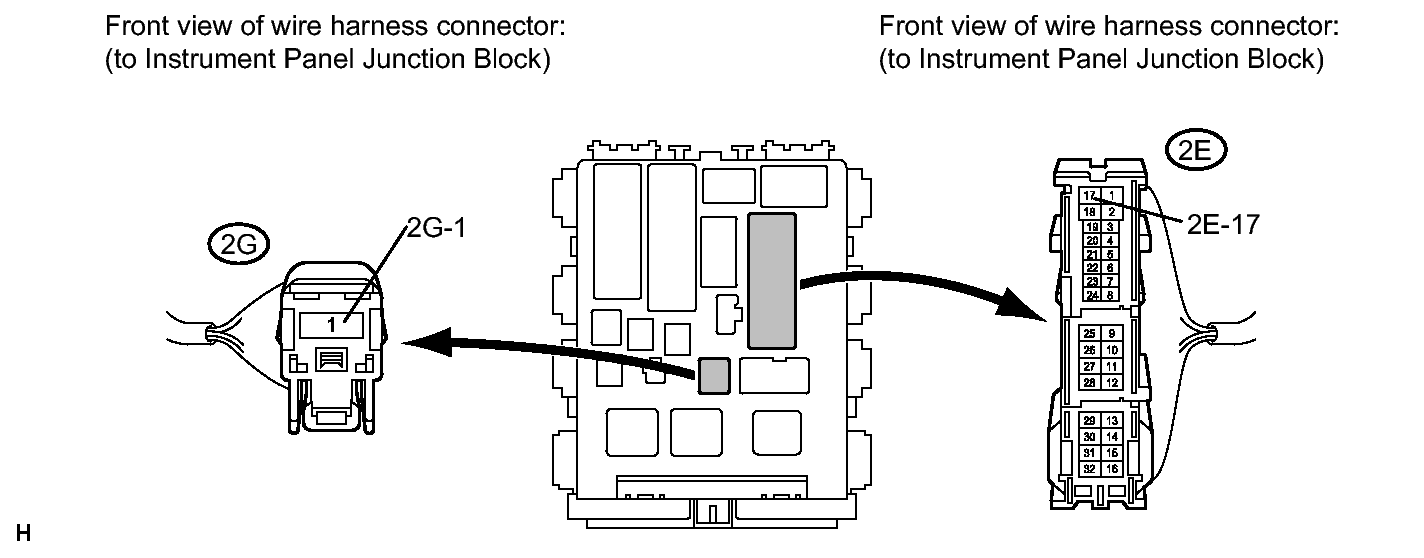

   Fig 3: Identifying 2E And 2G Junction Block Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2E-17 - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   2G-1 - Body ground	Always	11 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK - BATTERY AND BODY GROUND)

OK → REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)
