DTC B2278: Engine Switch Circuit Malfunction: Procedure

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE USING TECHSTREAM (START SWITCH)
    1. Connect the Techstream to the DLC3.
    2. Check the Data List for proper functioning of the start switch.

      HINT:

      When using the Techstream with the engine switch off, turn on and off any of the door courtesy light switches repeatedly at 1.5 second intervals or less until communication between the Techstream and vehicle starts.

      MAIN BODY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Start Switch 1 Start Switch 1 / ON or OFF ON: Engine switch is pushed
      OFF: Engine switch is not pushed
      -
      Start Switch 22 Start Switch 2 / ON or OFF ON: Engine switch is pushed
      OFF: Engine switch is not pushed
      -

      OK

      ON (engine switch is pushed) and OFF (engine switch is not pushed) appear on the screen.

    NG → See step   2

    OK → REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)

  2. INSPECT ENGINE SWITCH
    1. Remove the engine switch. Refer to REMOVAL .

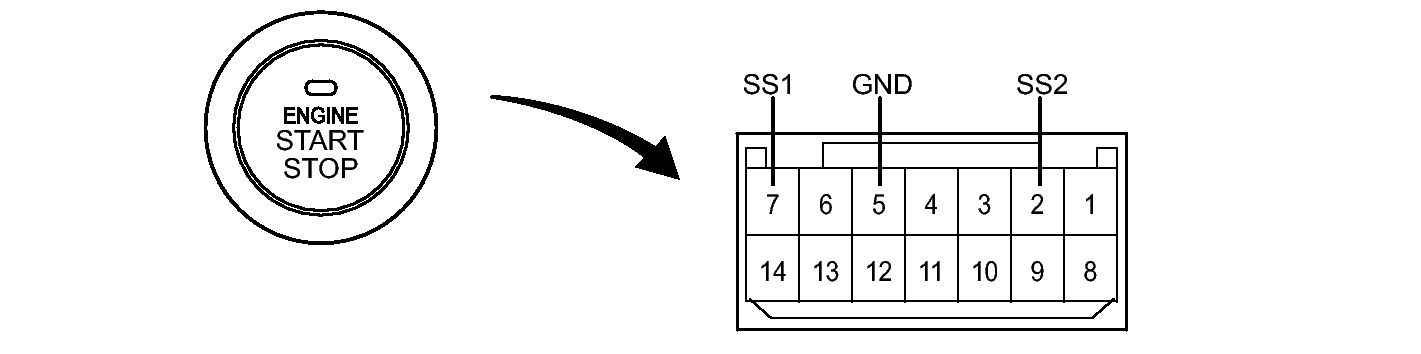

      Fig 1: Inspecting Engine Switch
      GTY104447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      7 (SS1) - 5 (GND) Pushed Below 1 Ω
      2 (SS2) - 5 (GND) Pushed Below 1 Ω
      7 (SS1) - 5 (GND) Not pushed 10 kΩ or higher
      2 (SS2) - 5 (GND) Not pushed 10 kΩ or higher

      HINT:

      This switch is a momentary type switch.

    NG → See step   4

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (ENGINE SWITCH - MAIN BODY ECU AND BODY GROUND)
    1. Disconnect the E51 ECU connector.

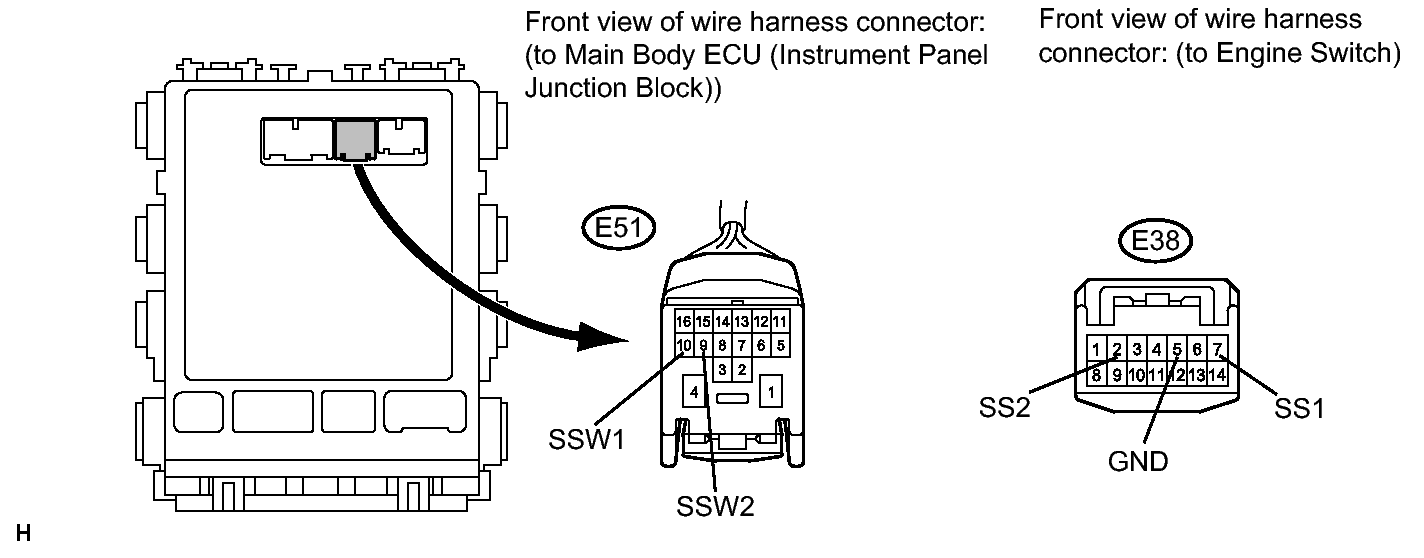

      Fig 2: Identifying E51 ECU And E38 Switch Connector
      GTY177280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the E38 switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E38-7 (SS1) - E51-10 (SSW1) Always Below 1 Ω
      E38-2 (SS2) - E51-9 (SSW2) Always Below 1 Ω
      E38-5 (GND) - Body ground Always Below 1 Ω
      E38-7 (SS1) or E51-10 (SSW1) - Body ground Always 10 kΩ or higher
      E38-2 (SS2) or E51-9 (SSW2) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (ENGINE SWITCH - MAIN BODY ECU AND BODY GROUND)

    OK → REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)

  4. REPLACE ENGINE SWITCH. Refer to  REMOVAL
