DTC B2286: Runnable Signal Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

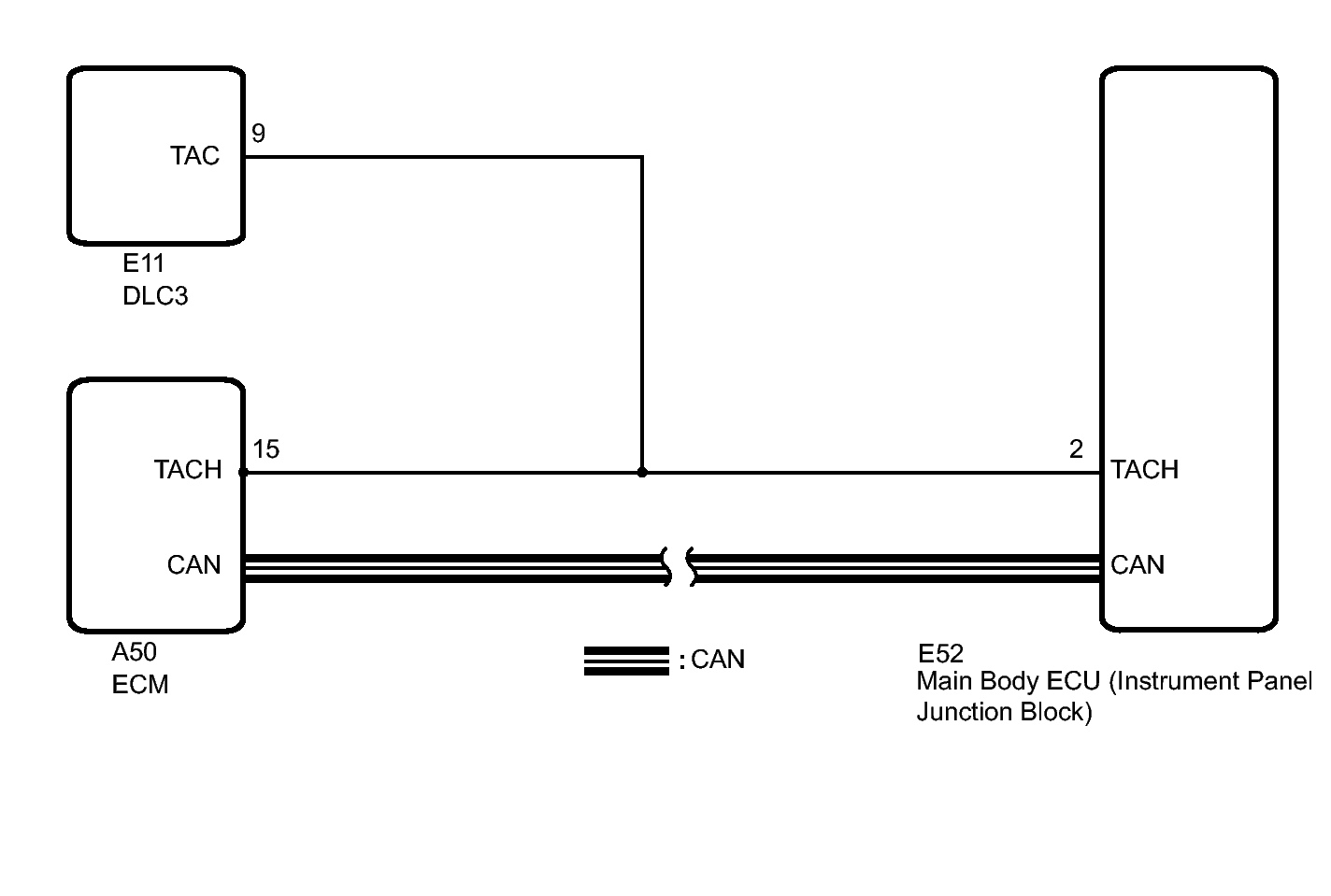

Fig 1: Main Body ECU (Instrument Panel Junction Block) - Wiring Diagram
GTY200288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
