Steering Pad Switch: Removal: Removal

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
Refer to PRECAUTION
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
REMOVE LOWER NO. 3 STEERING WHEEL COVER . Refer to REMOVAL - Step 3
REMOVE LOWER NO. 2 STEERING WHEEL COVER . Refer to REMOVAL - Step 4
REMOVE STEERING PAD . Refer to REMOVAL - Step 5
REMOVE STEERING PAD SWITCH LH
1. for Type A:
  1. Disconnect the pad switch connector from the spiral cable and disengage the clamp.

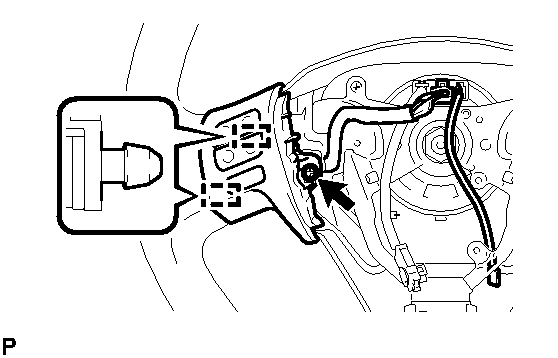

    Fig 1: Locating Pad Switch Connector With Clamp
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the screw.

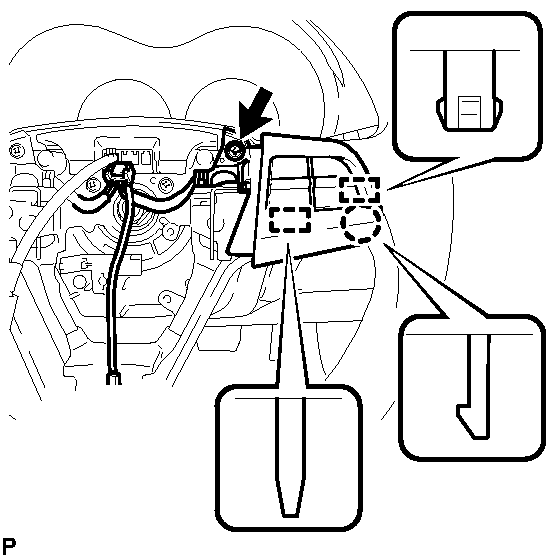

    Fig 2: Identifying Steering Pad Switch LH Pins And Screw
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Disengage the 2 pins and remove the steering pad switch LH.
2. for Type B:
  1. Disconnect the steering pad switch assembly connector from the spiral cable.

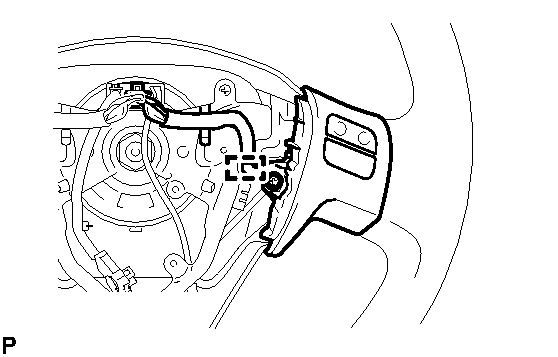

    Fig 3: Locating Steering Pad Switch Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the screw.

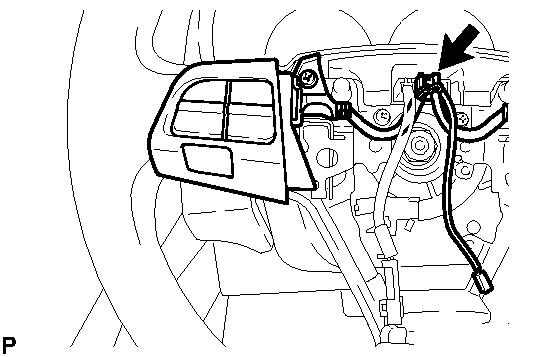

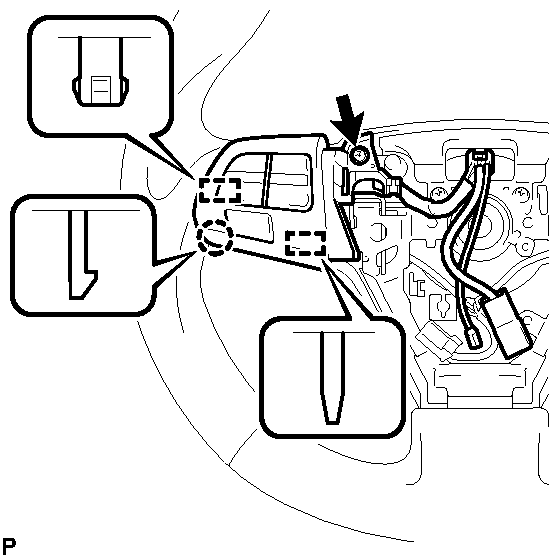

    Fig 4: Identifying Steering Pad Switch LH Pins And Claw
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Disengage the 2 pins and claw, and remove the steering pad switch LH.
REMOVE STEERING PAD SWITCH ASSEMBLY
1. for Type A:
  1. Disconnect the pad switch connector from the spiral cable and disengage the clamp.

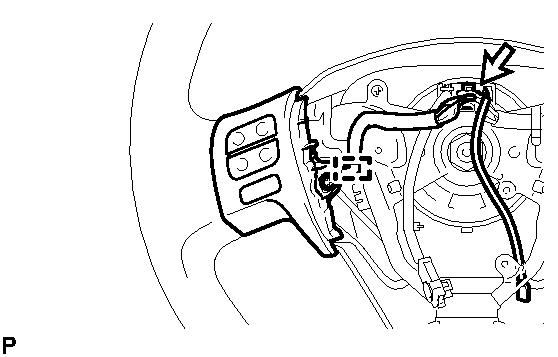

    Fig 5: Locating Pad Switch Connector With Clamp
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the screw.

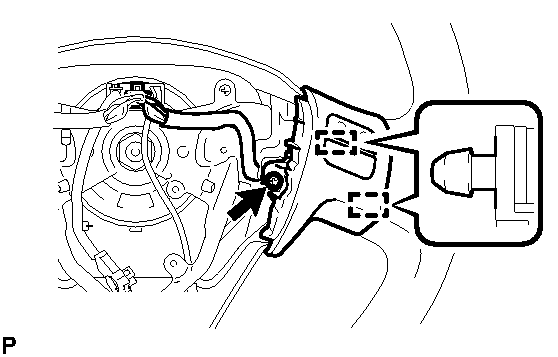

    Fig 6: Identifying Steering Pad Switch Pins
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Disengage the 2 pins and remove the steering pad switch.
  4. Disengage the clamp.

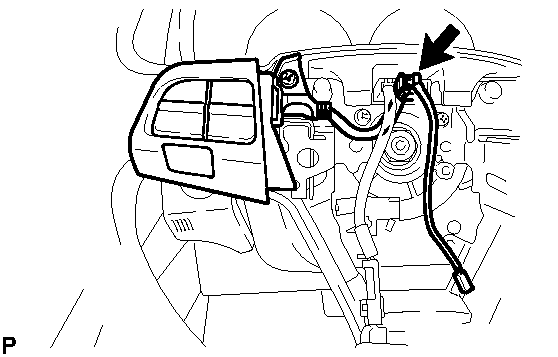

    Fig 7: Identifying Steering Pad Switch Clamp
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Remove the screw.

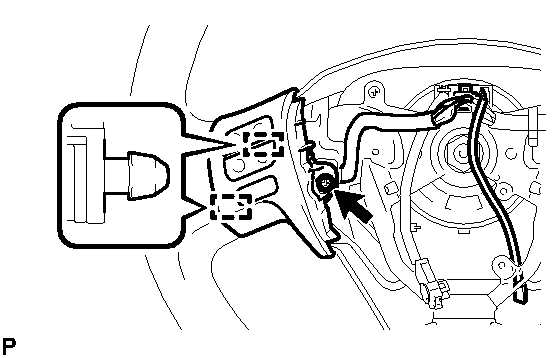

    Fig 8: Identifying Steering Pad Switch Assembly With Pins
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Disengage the 2 pins and remove the steering pad switch assembly.
2. for Type B:
  1. Disconnect the steering pad switch connector from the spiral cable.

    Fig 9: Identifying Steering Pad Switch Assembly (W/ Front Spoiler)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the screw.

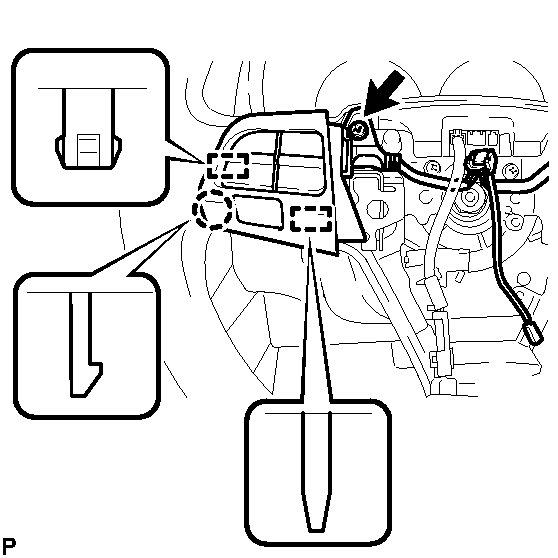

    Fig 10: Locating Steering Pad Switch Connector With Fasteners LH
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Disengage the 2 pins and claw, and remove the steering pad switch.
  4. Remove the screw.

    Fig 11: Locating Steering Pad Switch Connector With Fasteners RH
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Disengage the 2 pins and claw, and remove the steering pad switch assembly.
