License Plate Light Assembly: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL LICENSE PLATE LIGHT BULB
1. Install the license plate light blub to the license plate light socket.
2. Turn the license plate light blub and the license plate light socket in the direction indicated by the arrow and install them as a unit.

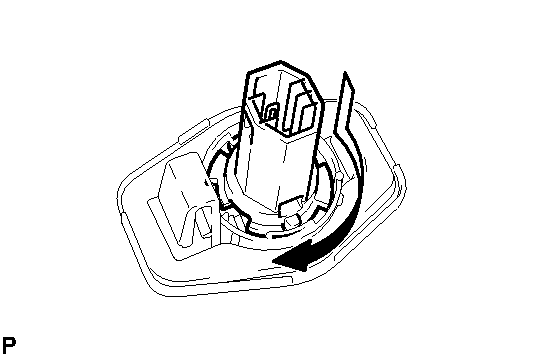

  Fig 1: Installing License Plate Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LICENSE PLATE LIGHT ASSEMBLY
1. Engage the 2 claws to install the license plate light assembly.

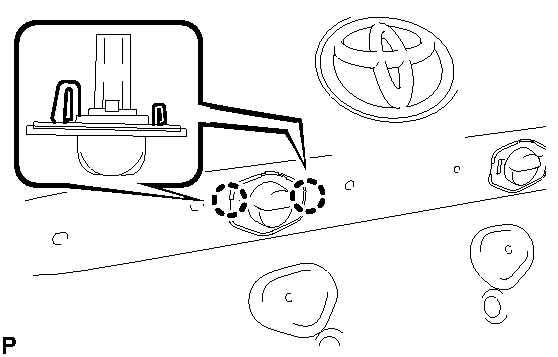

  Fig 2: Identifying License Plate Light Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL LUGGAGE COMPARTMENT DOOR COVER . Refer to INSTALLATION - Step 2
