Washer Motor: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
1. Install the windshield washer motor and pump assembly.

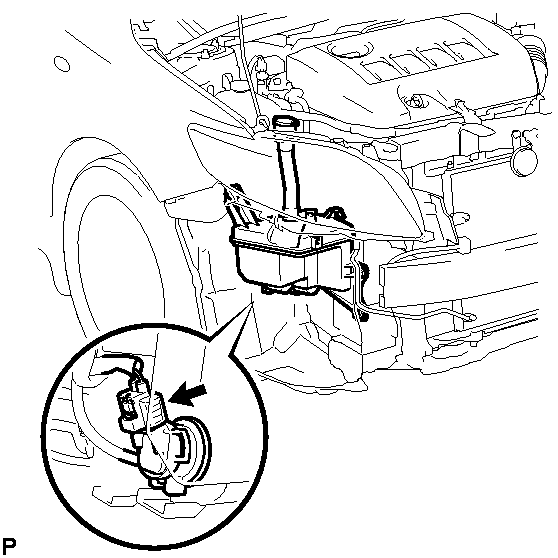

  Fig 1: Locating Windshield Washer Motor And Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
FILL WASHER JAR WITH WASHER FLUID
1. Connect the washer hose to the windshield washer motor and pump assembly and fill the washer jar with washer fluid.

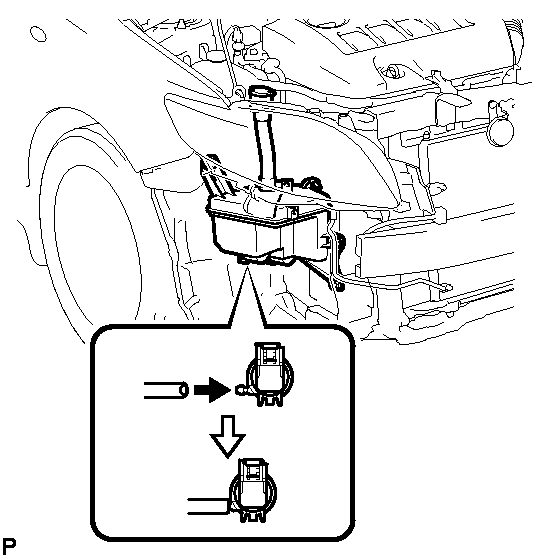

  Fig 2: Connecting Washer Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER ASSEMBLY
Refer to INSTALLATION
