Engine Switch: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ENGINE SWITCH
1. Engage the 2 claws to install the engine switch.

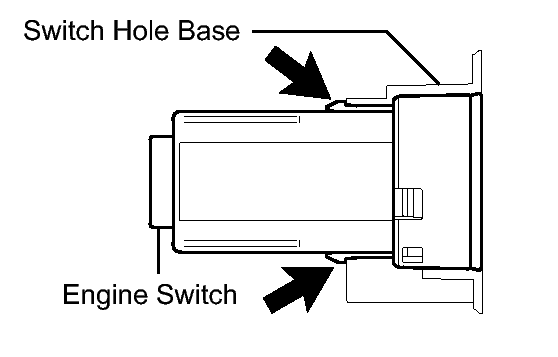

  Fig 1: Identifying Engine Switch Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 SWITCH HOLE BASE . Refer to INSTALLATION - Step 8
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 9
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover) . Refer to INSTALLATION - Step 14
INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL INSTRUMENT PANEL FINISH PANEL END LH . Refer to INSTALLATION - Step 13
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH . Refer to INSTALLATION - Step 15
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
HINT:

Refer to INSTALLATION - Step 8 .
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
