Cruise Control Main Switch: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CRUISE CONTROL MAIN SWITCH
    1. Install the switch as shown in the illustration.

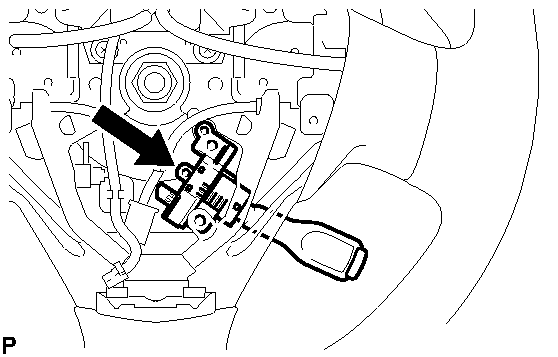

      Fig 1: Installing Cruise Control Main Switch
      GTY170580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.

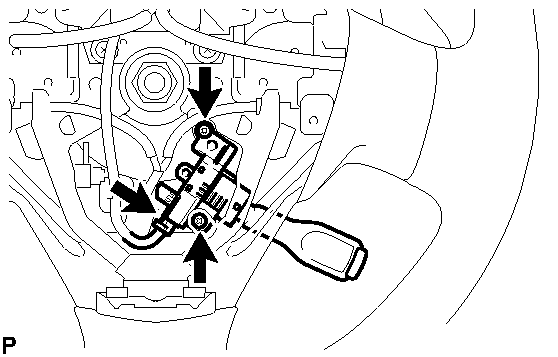

      Fig 2: Locating Cruise Control Main Switch Connector And Screws
      GTY207445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector.
  2. INSTALL STEERING PAD (w/o Front Spoiler)  . Refer to INSTALLATION - Step 1
  3. INSTALL STEERING PAD (w/ Front Spoiler)  . Refer to INSTALLATION - Step 2
  4. INSTALL LOWER NO. 3 STEERING WHEEL COVER (w/o Front Spoiler)  . Refer to INSTALLATION - Step 3
  5. INSTALL LOWER NO. 3 STEERING WHEEL COVER (w/ Front Spoiler)  . Refer to INSTALLATION - Step 4
  6. INSTALL LOWER NO. 2 STEERING WHEEL COVER (w/o Front Spoiler)  . Refer to INSTALLATION - Step 5
  7. INSTALL LOWER NO. 2 STEERING WHEEL COVER (w/ Front Spoiler)  . Refer to INSTALLATION - Step 6
  8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  9. INSPECT STEERING PAD  . Refer to INSTALLATION - Step 8
  10. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
