Radio Receiver: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL RADIO RECEIVER ASSEMBLY
INSTALL NO. 1 RADIO BRACKET
1. Install the No. 1 radio bracket with the 4 screws.

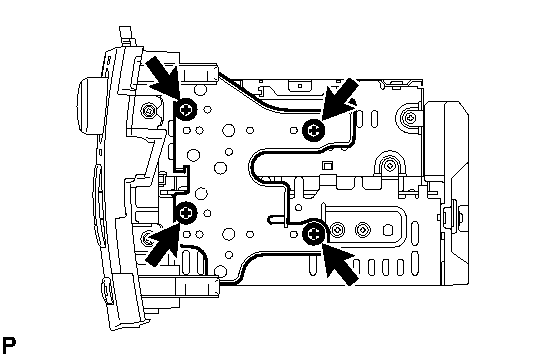

  Fig 1: Locating No. 1 Radio Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 RADIO BRACKET
1. Install the No. 2 radio bracket with the 4 screws.

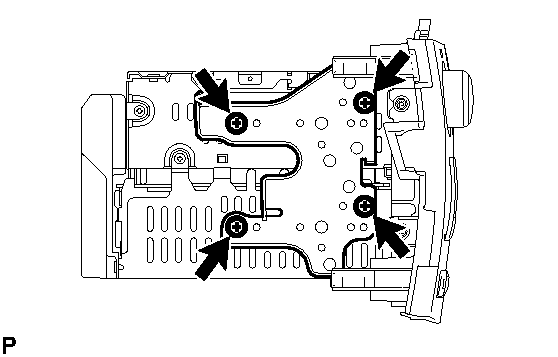

  Fig 2: Locating No. 2 Radio Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIO RECEIVER WITH BRACKET
1. Connect each connector.
2. Engage the 4 clips.

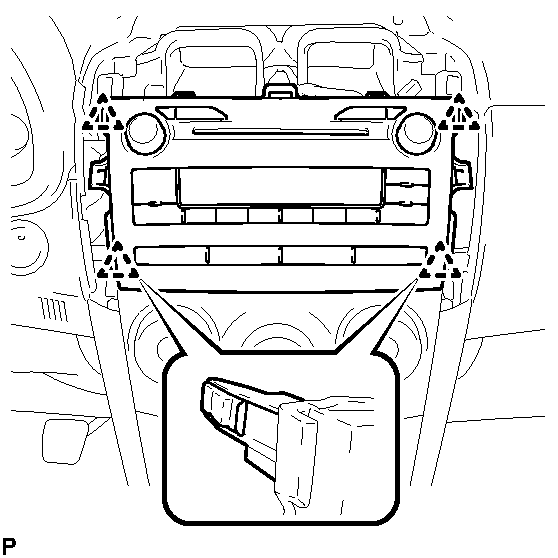

  Fig 3: Identifying Radio Receiver Bracket Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  WARNING:
  When installing the radio receiver with bracket, check that the wire harness and No. 2 antenna cord sub-assembly are not caught between the radio receiver with bracket and the instrument panel reinforcement assembly. Failure to do so may cause a short circuit.
3. Install the radio receiver with bracket with the 4 bolts.

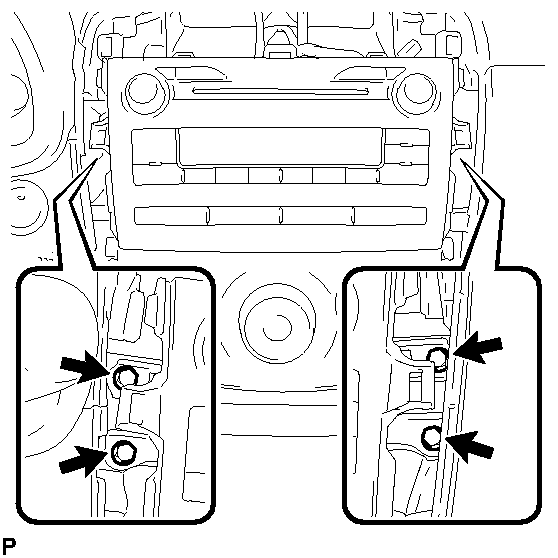

  Fig 4: Locating Radio Receiver Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY . Refer to INSTALLATION - Step 12
INSTALL INSTRUMENT PANEL FINISH PANEL END LH . Refer to INSTALLATION - Step 13
INSTALL INSTRUMENT PANEL FINISH PANEL END RH . Refer to INSTALLATION - Step 14
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH . Refer to INSTALLATION - Step 15
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH . Refer to INSTALLATION - Step 16
