Input Shaft: Inspection: Inspection

WARNING: This page is about a different variant/trim than selected.

INSPECT 4TH GEAR THRUST CLEARANCE
1. Using a feeler gauge, measure the 4th gear thrust clearance.

  Fig 1: Measuring 4th Gear Thrust Clearance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard clearance

  0.10 to 0.57 mm (0.00394 to 0.0224 in.)

  If the clearance is out of specification, replace the No. 2 transmission clutch hub, 4th gear, or input shaft rear radial ball bearing.
INSPECT 3RD GEAR THRUST CLEARANCE
1. Using a dial indicator, measure the 3rd gear thrust clearance.

  Fig 2: Measuring 3rd Gear Thrust Clearance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard clearance

  0.10 to 0.35 mm (0.00394 to 0.0138 in.)

  If the clearance is out of specification, replace the No. 2 transmission clutch hub, 3rd gear, or input shaft.

INSPECT 4TH GEAR RADIAL CLEARANCE

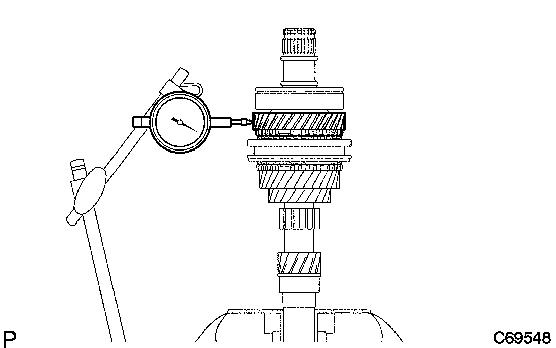

Using a dial indicator, measure the 4th gear radial clearance.

Fig 3: Measuring 4th Gear Radial Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Clearance

Bearing	Standard Clearance mm (in.)
KOYO made	0.009 to 0.053 (0.000354 to 0.00208)
NSK made	0.009 to 0.051 (0.000354 to 0.00201)

If the clearance is out of specification, replace the 4th gear, needle roller bearing, or input shaft.

INSPECT 3RD GEAR RADIAL CLEARANCE

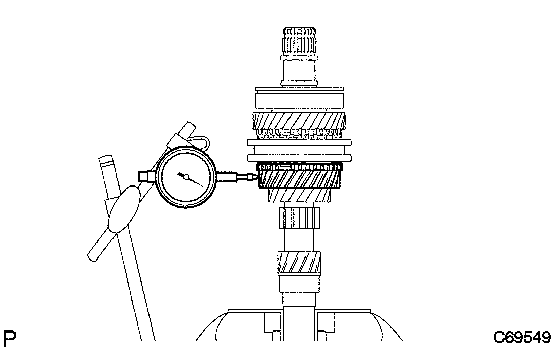

Using a dial indicator, measure the 3rd gear radial clearance.

Fig 4: Measuring 3rd Gear Radial Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Clearance

Bearing	Standard Clearance mm (in.)
KOYO made	0.009 to 0.053 (0.000354 to 0.00208)
NSK made	0.009 to 0.051 (0.000354 to 0.00201)

If the clearance is out of specification, replace the 3rd gear, needle roller bearing, or input shaft.

INSPECT INPUT SHAFT

Using V-blocks and a dial indicator, inspect the shaft for runout.

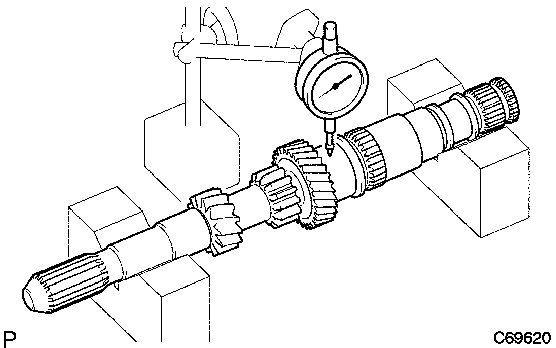

Fig 5: Using V-Block And Dial Indicator To Inspect Shaft For Run Out
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Maximum runout

0.03 mm (0.00118 in.)

If the runout exceeds the maximum, replace the input shaft.

Using a micrometer, measure the outside diameter of the input shaft journal surface.

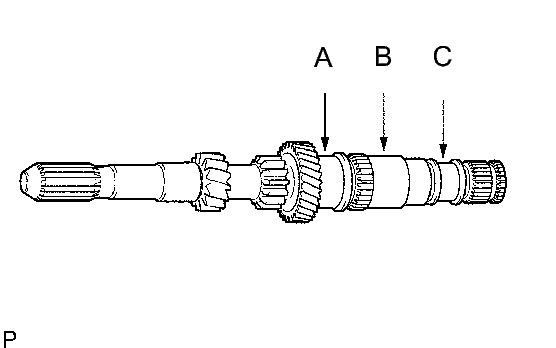

Fig 6: Measuring Outside Diameter Of Input Shaft Journal Surface

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Outside Diameter

Part	Standard Outside Diameter mm (in.)	Minimum Outside Diameter mm (in.)
A	35.984 to 36.000 (1.4167 to 1.4173)	35.984 (1.4167)
B	35.984 to 36.000 (1.4167 to 1.4173)	35.984 (1.4167)
C	27.957 to 27.972 (1.1007 to 1.1013)	27.957 (1.1007)

If the outside diameter is less than the minimum, replace the input shaft.

INSPECT 4TH GEAR

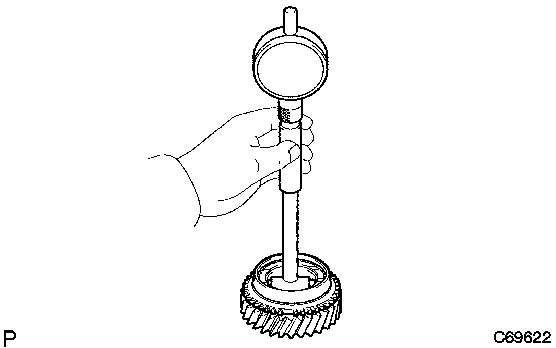

Using a cylinder gauge, measure the inside diameter of the 4th gear.

Fig 7: Measuring Inside Diameter Of 4Th Gear

Inside Diameter

Standard Inside Diameter mm (in.)	Maximum Inside Diameter mm (in.)
42.009 to 42.025 (1.6539 to 1.6545)	42.025 (1.6545)

If the inside diameter exceeds the maximum, replace the 4th gear.

INSPECT 3RD GEAR

Using a cylinder gauge, measure the inside diameter of the 3rd gear.

Fig 8: Measuring Inside Diameter Of 4Th Gear

Inside Diameter

Standard Inside Diameter mm (in.)	Maximum Inside Diameter mm (in.)
43.009 to 43.025 (1.6933 to 1.6939)	43.025 (1.6939)

If the inside diameter exceeds the maximum, replace the 3rd gear.

INSPECT NO. 4 SYNCHRONIZER RING

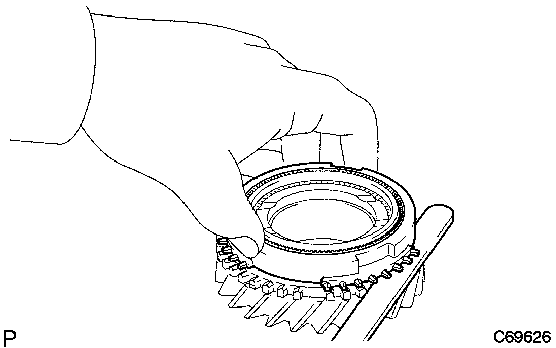

1. Coat the 4th gear cone with gear oil. Turn the No. 4 synchronizer ring in one direction while pushing it against the 4th gear cone. Check that the ring locks.

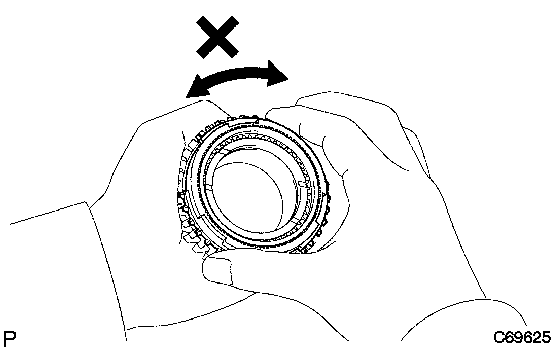

  Fig 9: Turning 2nd Synchronizer Outer Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the No. 4 synchronizer ring does not lock, replace the ring or the 4th gear.

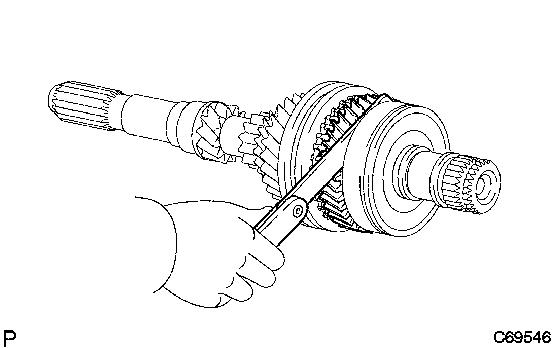

2. Using a feeler gauge, measure the clearance between the No. 4 synchronizer ring back and 4th gear spline end.

  Fig 10: Measuring Clearance Between Synchronizer Outer Ring Back And 4Th Gear Spline End
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard clearance

  0.75 to 1.65 mm (0.0295 to 0.0650 in.)

  If the clearance is not as specified, replace the synchronizer ring.
INSPECT NO. 3 SYNCHRONIZER RING

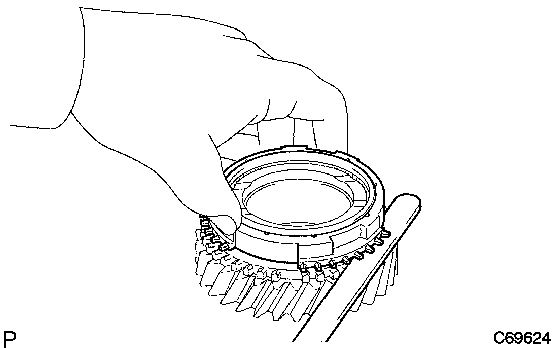

1. Coat the 3rd gear cone with gear oil. Turn the synchronizer outer ring in one direction while pushing it against the 3rd gear cone. Check that the ring locks.

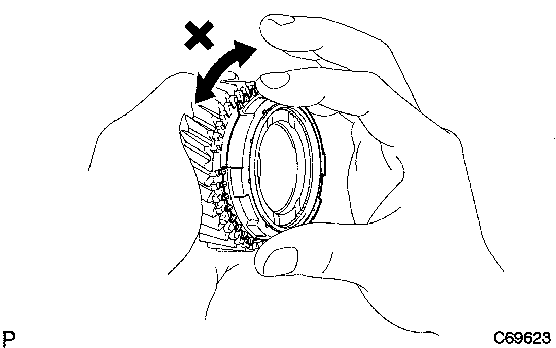

  Fig 11: Turning Synchronizer Outer Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the synchronizer outer ring does not lock, replace the ring or the 3rd gear.
2. Using a feeler gauge, measure the clearance between the No. 3 synchronizer ring back and 3rd gear spline end.

  Fig 12: Using Feeler Gauge To Measure Clearance Between Synchronizer Ring No. 3 Back And 3rd Gear Spline End
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard clearance

  0.65 to 1.75 mm (0.0256 to 0.0689 in.)

  If the clearance is not as specified, replace the No. 3 synchronizer ring.
INSPECT NO. 2 TRANSMISSION HUB SLEEVE

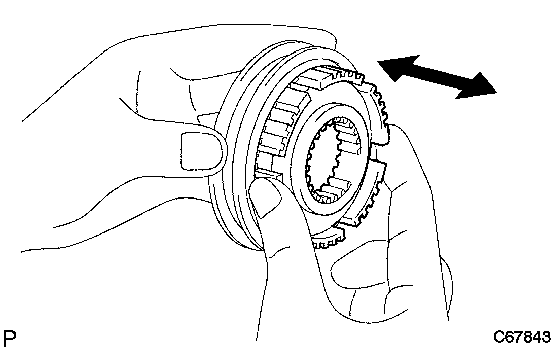

1. Inspect the sliding condition between the No. 2 transmission hub sleeve and No. 2 transmission clutch hub.

  Fig 13: Checking Sliding Condition Between Transmission Hub Sleeve No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the tip of the spline gear on the No. 2 transmission hub sleeve for wear.
  If any defects are found, replace the transmission hub sleeve or the transmission clutch hub.
3. Using a vernier caliper, measure the width of the No. 3 transmission hub sleeve groove and the thickness of the claw part on the No. 1 gear shift fork, and calculate the clearance.

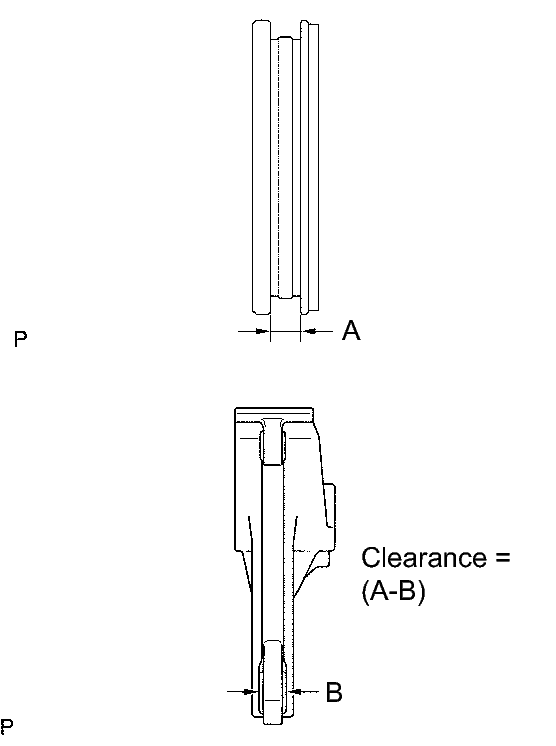

  Fig 14: Identifying Width Of No. 3 Transmission Hub Sleeve Groove And Thickness Of Claw Part On No. 1 Gear Shift Fork
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard clearance

  0.11 to 0.69 mm (0.00433 to 0.0272 in.) {A - B}

  If the clearance is not as specified, replace the No. 2 transmission hub sleeve and No. 2 gear shift fork with new ones.
