Engine Unit: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY . Refer to REMOVAL - Step 7
REMOVE FUEL INJECTOR ASSEMBLY . Refer to REMOVAL - Step 8
REMOVE INTAKE MANIFOLD . Refer to REMOVAL - Step 19
REMOVE NO. 1 INTAKE MANIFOLD INSULATOR
1. Remove the No. 1 intake manifold insulator.

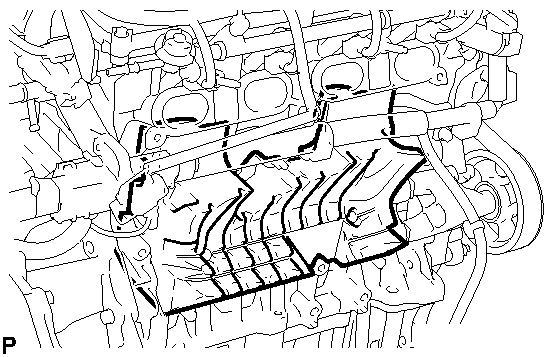

  Fig 1: Identifying Intake Manifold Insulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR . Refer to REMOVAL - Step 8
REMOVE MANIFOLD STAY . Refer to REMOVAL - Step 10
REMOVE NO. 2 MANIFOLD STAY . Refer to REMOVAL - Step 11
REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY . Refer to REMOVAL - Step 12
REMOVE INLET WATER . Refer to REMOVAL - Step 3
REMOVE THERMOSTAT . Refer to REMOVAL - Step 4
REMOVE ENGINE OIL DIPSTICK
REMOVE ENGINE OIL DIPSTICK GUIDE See step 30
REMOVE NO. 1 WATER BY-PASS PIPE
1. Remove the bolt and 2 nuts, then remove the No. 1 water by-pass pipe.

  Fig 2: Locating No. 1 Water By-Pass Pipe Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the gasket.
REMOVE IGNITION COIL ASSEMBLY . Refer to REMOVAL - Step 2
REMOVE KNOCK SENSOR . Refer to REMOVAL - Step 19
REMOVE OIL PRESSURE SWITCH . Refer to REMOVAL - Step 2
REMOVE ENGINE COOLANT TEMPERATURE SENSOR . Refer to REMOVAL - Step 5
REMOVE RADIO SETTING CONDENSER
1. Remove the bolt and radio setting condenser.

  Fig 3: Locating Radio Setting Condenser Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
