2ZR-FE ENGINE CONTROL: CAMSHAFT POSITION SENSOR: INSTALLATION

HINT
Although the part name refers to the No. 1 crank position sensors, this procedure is for the camshaft position sensors.

1. INSTALL NO. 1 CRANK POSITION SENSOR

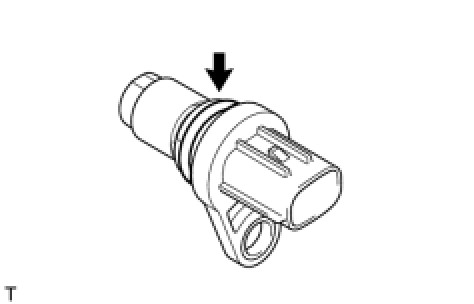

(a) Apply a light coat of engine oil to the O-rings on the No. 1 crank position sensors.

(b) Intake camshaft side:

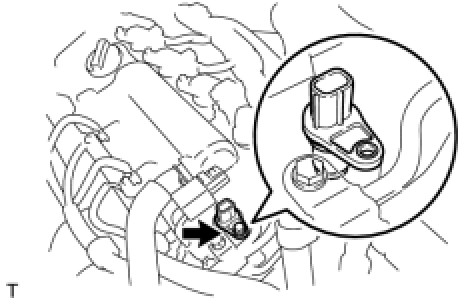

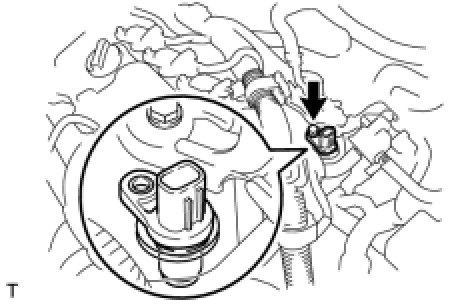

(1) Install the No. 1 crank position sensor with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

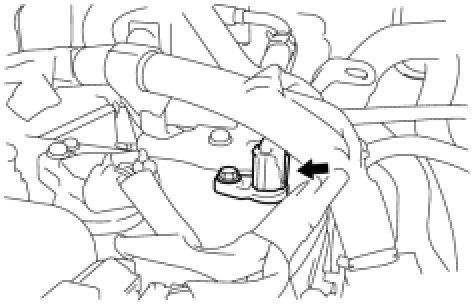

(2) Connect the No. 1 crank position sensor connector.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

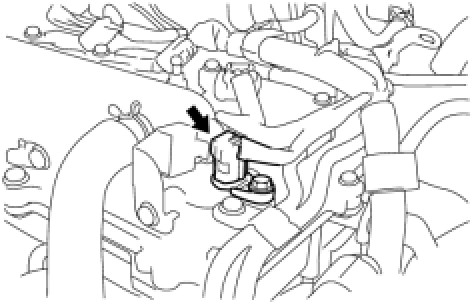

(2) Connect the No. 1 crank position sensor.

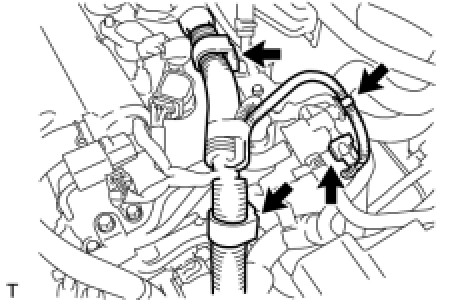

(3) Connect the 3 engine wire harness clamps and duty vacuum switching connector.

2. INSPECT FOR OIL LEAK

3. INSTALL NO. 2 CYLINDER HEAD COVER Installation
