Installation

2ZR-FE ENGINE CONTROL: CRANKSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CRANK POSITION SENSOR

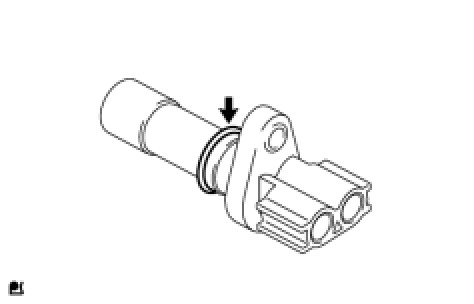

(a) Apply a light coat of engine oil to the O-ring on the crank position sensor.

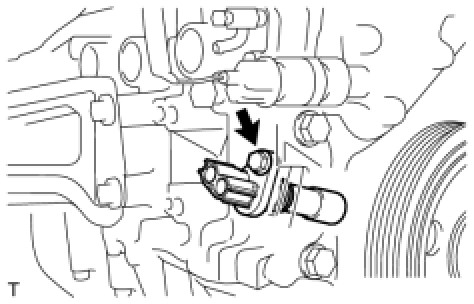

(b) Install the crank position sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7.4 ft-lbf)

(c) Connect the crank position sensor connector.

2. INSPECT FOR OIL LEAK

3. INSTALL ENGINE UNDER COVER RH
