Installation

2ZR-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

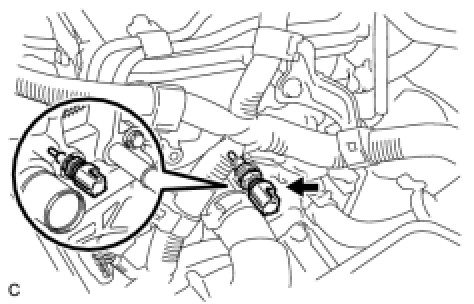

(a) Install the engine coolant temperature sensor through a new gasket.





Torque : 20 Nm (200 kgf-cm, 14 ft-lbf)

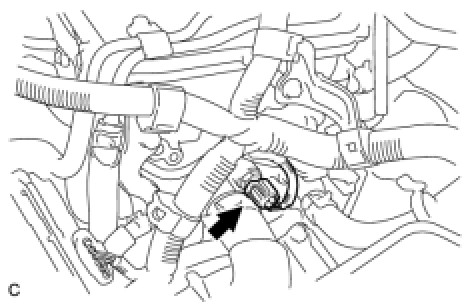

(b) Connect the engine coolant temperature sensor connector.





2. ADD ENGINE COOLANT Service and Repair

3. INSPECT FOR COOLANT LEAK Testing and Inspection

4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Installation

5. INSTALL NO. 2 CYLINDER HEAD COVER Installation
