Installation

2ZR-FE ENGINE CONTROL: IGNITION COIL AND SPARK PLUG: INSTALLATION

1. INSTALL SPARK PLUG

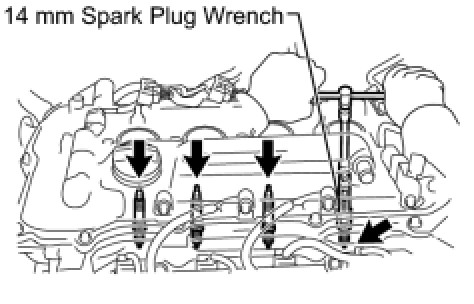

(a) Using a 14 mm spark plug wrench, install the 4 spark plugs.





Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

2. INSTALL IGNITION COIL ASSEMBLY

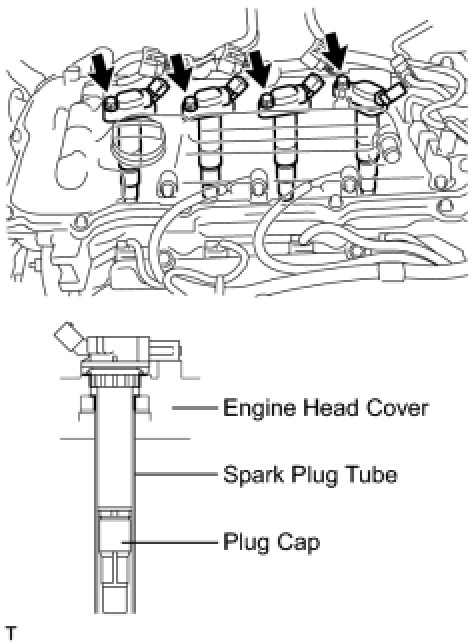

(a) Install the 4 ignition coils with the 4 bolts.





Torque : 10 Nm (102 kgf-cm, 7.4 ft-lbf)

NOTICE:
When installing each ignition coil, do not damage the plug cap on the engine head cover opening or the upper edge of the spark plug tube.

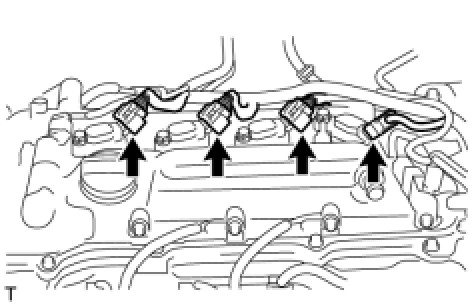

(b) Connect the 4 ignition coil connectors.





3. INSTALL NO. 2 CYLINDER HEAD COVER Installation
