Torque Specifications





SPECIFICATIONS: 2ZR-FE INTAKE / EXHAUST: TORQUE SPECIFICATIONS

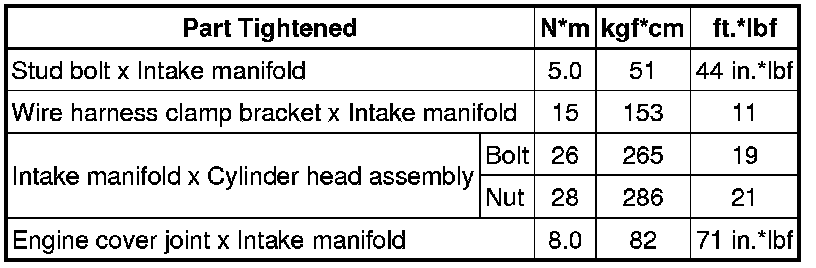

INTAKE MANIFOLD

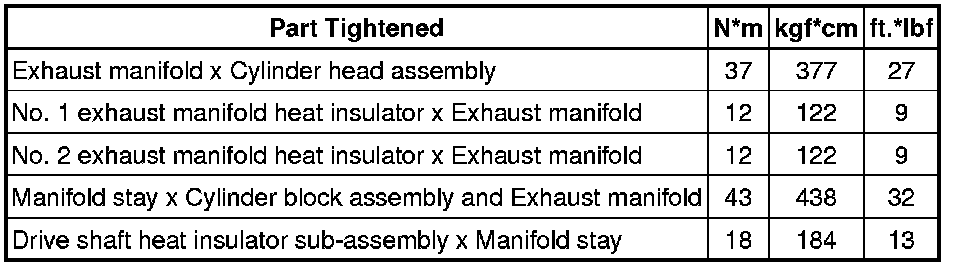

EXHAUST MANIFOLD

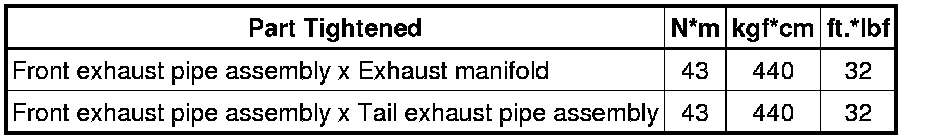

EXHAUST PIPE
