Camshaft Position Sensor: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Although the part name refers to the No. 1 crank position sensors, this procedure is for the camshaft position sensors.

INSTALL NO. 1 CRANK POSITION SENSOR
1. Apply a light coat of engine oil to the O-rings on the No. 1 crank position sensors.

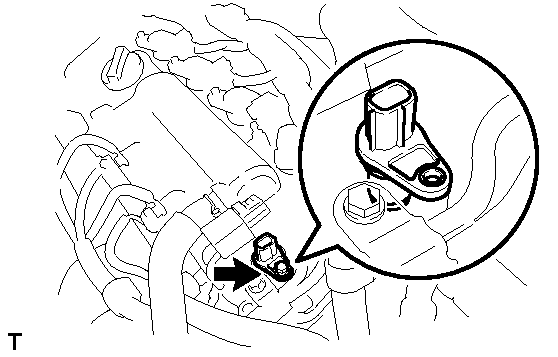

  Fig 1: View Of Camshaft Position Sensor O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Intake camshaft side:
  1. Install the No. 1 crank position sensor with the bolt.

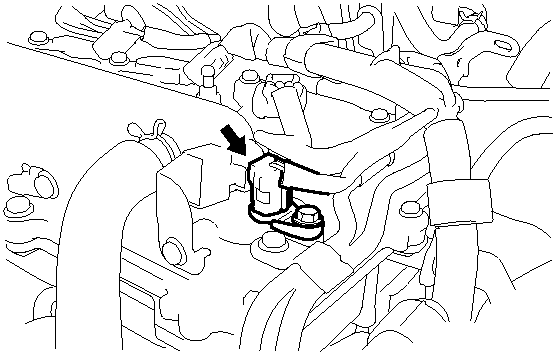

    Fig 2: Remove/Install Camshaft Position Sensor Bolt (For Intake Camshaft Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  2. Connect the No. 1 crank position sensor connector.

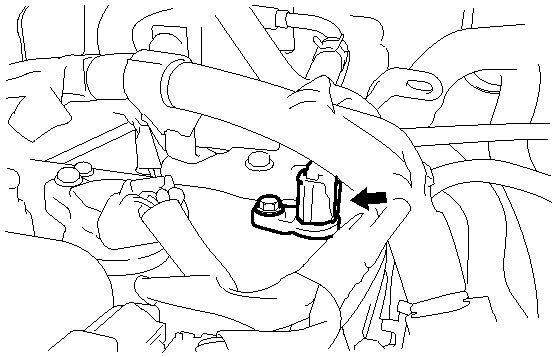

    Fig 3: Locating No. 1 Crank Position Sensor Connector (For Intake Camshaft Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Exhaust camshaft side:
  1. Install the No. 1 crank position sensor with the bolt.

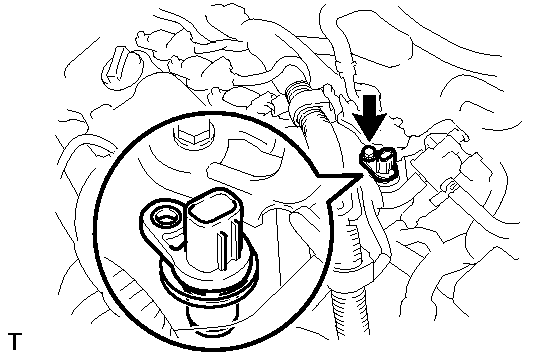

    Fig 4: Remove/Install Camshaft Position Sensor Bolt (For Exhaust Camshaft Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  2. Connect the No. 1 crank position sensor.

    Fig 5: Locating No. 1 Crank Position Sensor Connector (For Exhaust Camshaft Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Connect the 3 engine wire harness clamps and duty vacuum switching connector.

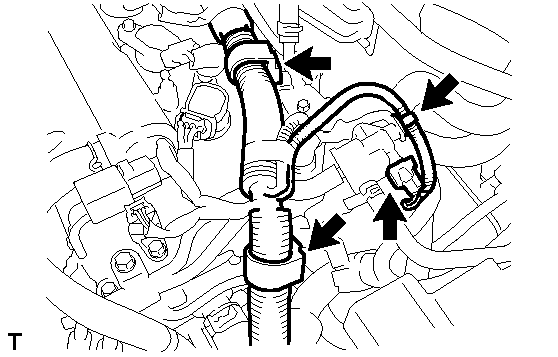

    Fig 6: Locating Engine Wire Harness Clamps (For Exhaust Camshaft Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FOR OIL LEAK
INSTALL NO. 2 CYLINDER HEAD COVER . Refer to INSTALLATION - Step 85
