Ambient Temperature Sensor: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AMBIENT TEMPERATURE SENSOR
1. Engage the clamp to install the ambient temperature sensor.

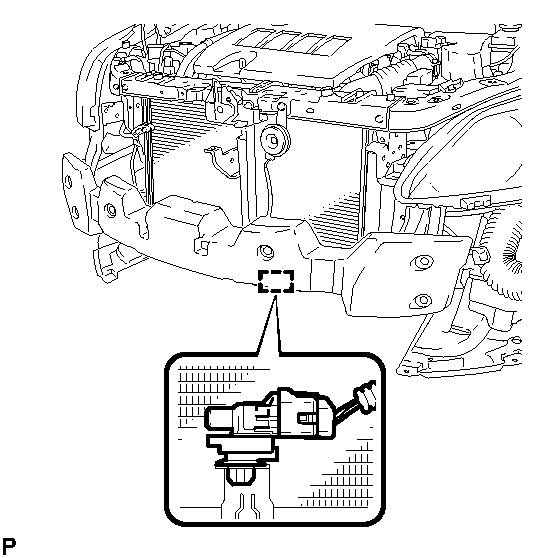

  Fig 1: View Of Ambient Temperature Sensor Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL FRONT BUMPER ASSEMBLY (except Sport Package) . Refer to INSTALLATION - Step 1
INSTALL FRONT BUMPER ASSEMBLY (for Sport Package) . Refer to INSTALLATION - Step 2
INSTALL RADIATOR GRILLE PROTECTOR . Refer to INSTALLATION - Step 3
INSTALL NO. 4 ENGINE UNDER COVER (for 2AZ-FE) . Refer to INSTALLATION - Step 4
ADJUST FOG LIGHT AIMING (w/ Fog Light)
Refer to ADJUSTMENT
